Flange S50F-L Series Incremental encoder magnetic encoder 16384ppr

FOB Reference Price:Get Latest Price
US $20-50 / Pieces | 1 Piece/Pieces Flange S50F-L Series Incremental encoder magnetic encoder 16384p (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENG XIANG
Model Number:
Flange S50F-L Series Incremental encoder magnetic encoder 16384ppr
Usage:
Pressure Sensor
Theory:
Optical Sensor
Output:
square-wave signal
item:
Flange S50F-L Series Incremental encoder magnetic encoder 16384ppr
External diameter:
50mm
Shaft diameter:
8mm& 10mm (Dtype)
Resolution:
up to 23040 PPR
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC12V-24V
Outlet type:
wire out from back
MOQ:
1 PCS
Wire length:
1M
Weight:
about 220g (with package)
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day Flange S50F-L Series Incremental encoder magnetic encoder 16384p
Packaging & Delivery
Packaging Details
Carton Box for Flange S50F-L Series Incremental encoder magnetic encoder 16384ppr.
Port
Shanghai
Lead Time :
3-5 days

Flange S50F-L Series Incremental encoder magnetic encoder 16384ppr





Our Services

24 hours aa.jpg online serive,Freely contact us right now!!!



1) Advantages







1, Certification: CE & ISO9001 & SGS.

2, Feature: easy to install with flange, optional various output mode, long service life, etc.

3, Application: textile industry, packing machinery, production line, etc., for automation control









2) S50F-L Series Specification







Items Flange S50F-L Series Incremental encoder magnetic encoder 16384ppr
External dimensionsExternal diameter: 50mm
Thickness: 35.7mm
Shaft diameter: 8mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000;   23040
Output phasePhase A,B,Z or A- B- Z-
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side
Cable out from back
Socket out from back
Output modeCollector open circuit output
Voltage output
Push-pull output
Difference outputLong line drive (26LS31)
Compatible RS422
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50 & IP65
Cable length1M (cable length could be added appropriately by
       require, but it need payment individually)
Shell Aluminium
packageCarton box
Net weight About  190g (with package)
Certification CE

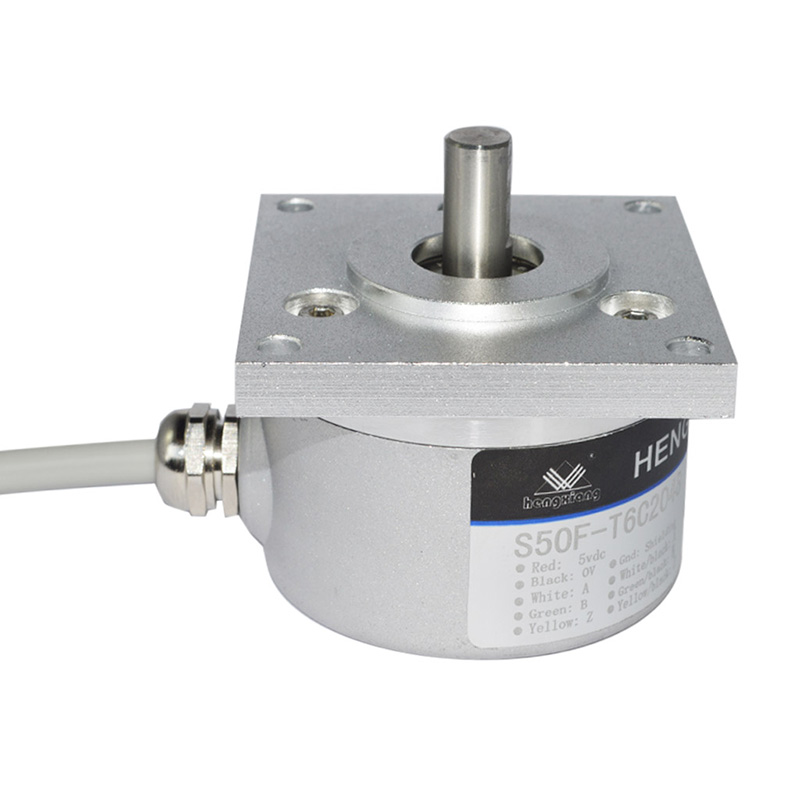

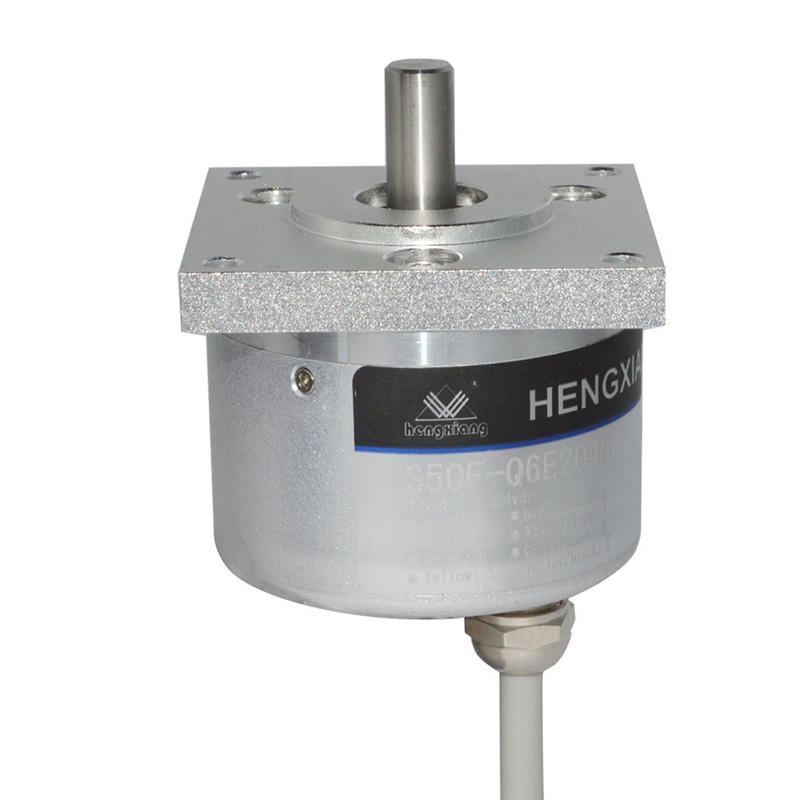

 3) Pictures

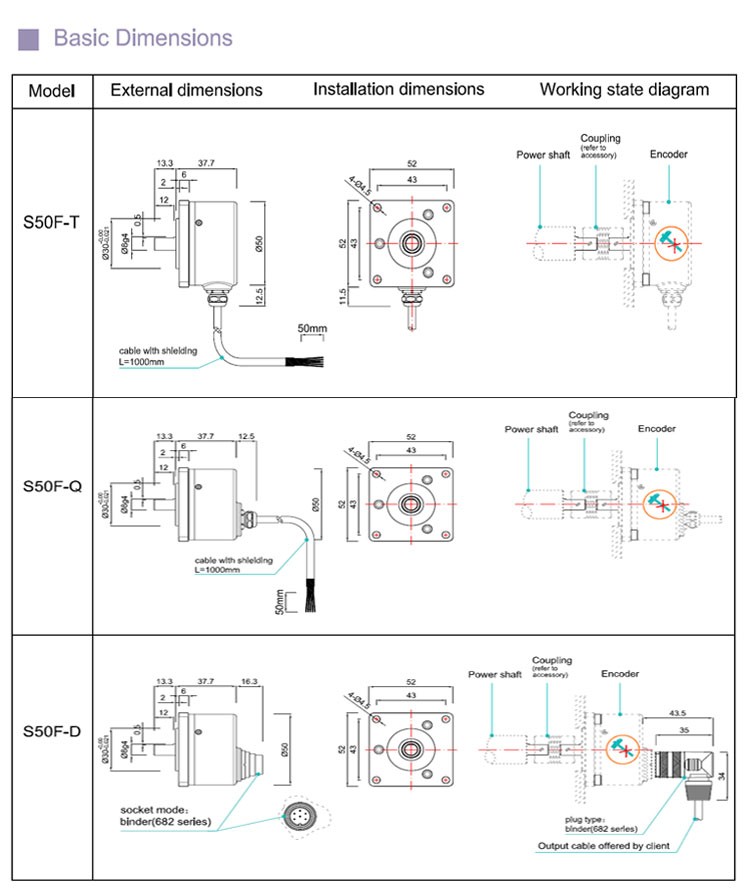

 4) Machine Dimension



S50F DEMENSION







FAQ

1) What specifications are needed before buying encoder?

         .External Diameter

         .Shaft Diameter

         .Phase & Revolution

         .Circuit Output Mode

         .Power Supply Voltage

2) How to choose a right encoder by yourself ?

      .Exact Specification Describtion

      .Check The Installation Dimensions

      . Contact Supplier to get more details

3) Why choose "Hengxiang" Brand Encoder

        .MOQ:1 PCS only

       .cheap price and big discount

       .short lead time----3days for samples,7-10days for mass production

       .perfect quality---we have CE,ISO,SGS certification.

                                       1year warranty   life-long technical support

4) How to order ?

            .You are welcome t o click  &
               To get the latest quotation right now!!!

5) Your Comapy Official Website?

            .You For More information,please freely visit our official website:http://www.shhxgd.cn
