Z38-L Series optical encoder module

FOB Reference Price:Get Latest Price
US $10-20 / Piece | 500 Piece/Pieces PCS (Min. Order)
Supply Ability:
100000 Piece/Pieces per Day Month
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
HENGXIANG
Model Number:
Z38-L Series
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
Square-wave output
Brand:
HENGXIANG
External diameter:
36.5mm
Thickness:
24mm
Shaft diameter:
6mm (punched hole)
Supply voltage:
DC5V & DC12V-24V
Resolution:
up to 1024 PPR
Outlet type:
wire out from back
Output mode:
NPN & voltage output & difference output
Weight:
bout 70g (with package)
Packaging & Delivery
Packaging Details
Carton box.
Delivery Time
general time a week, quantity depends!

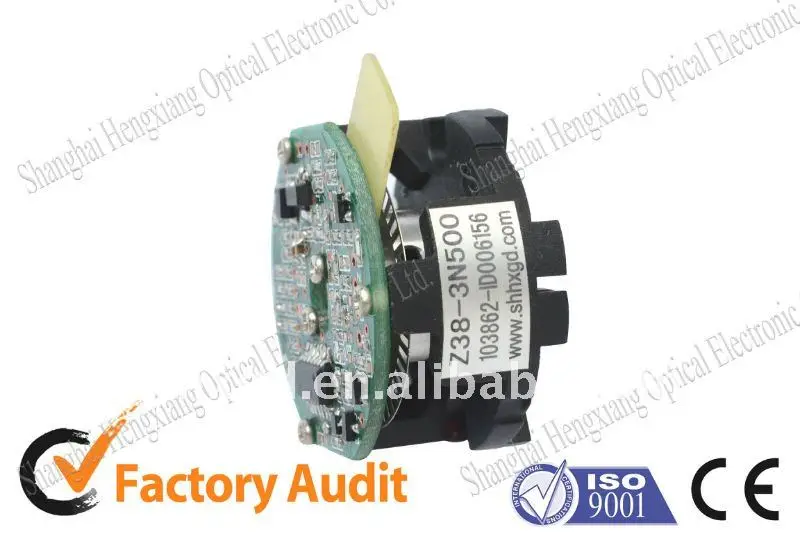

Z38-L Series Incremental Type Photoelectric Encoder Module







1) Advantages





1, Certification: CE & ISO9001 & SGS.

2, Feature: small volume, sturdy and durable, optional various output mode,

                    long service life, low price, etc.

3, Application: elevator field, packing machinery, production line, etc., for automation control.







2) Z38-L Series Specification





Items

Basic parameters

External dimensions

External diameter: 36.5mm

Thickness: 24mm

Shaft diameter:6mm( thorough hole)

Resolution

50;60;100;128;200;250;300;360;400;500;600;

800;1000;1024

Output phase

Phase A,B,Z

Supply voltage

DC5V & DC12~24V

Outlet type

Wire out from side

Wire out from back

Output mode

Collector open circuit output

Voltage output

Difference output

Environmental temperature

Operating temperature: -10~+70° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity

Operating and storage: 35~85%RH (non-condensing)

Shell

Aluminium

package

Carton box

Net weight

About 70g (with package)

Certification

CE







3) Pictures
