S38- Series electric photocell

FOB Reference Price:Get Latest Price
US $1-100 / Piece | 1 Piece/Pieces PCS (Min. Order)
Supply Ability:
100000 Piece/Pieces per Day for solid shaft encoder 3806
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
S38- Series
Usage:
Pressure Sensor
Theory:
Optical Sensor
Output:
Square-wave signal
Brand:
HENGXIANG
External diameter:
38mm
Shaft diameter:
6mm (D type)
Resolution:
up to 2500PPR
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC12-24V
Phase:
A,A',B,B',Z,Z'.
Outlet type:
wire out from back
Wire length:
1M
Weight:
about 120g (with package)
Packaging & Delivery
Packaging Details
Carton box for mini rotary encoder.
Delivery Time
General hours a week, quantity depends!

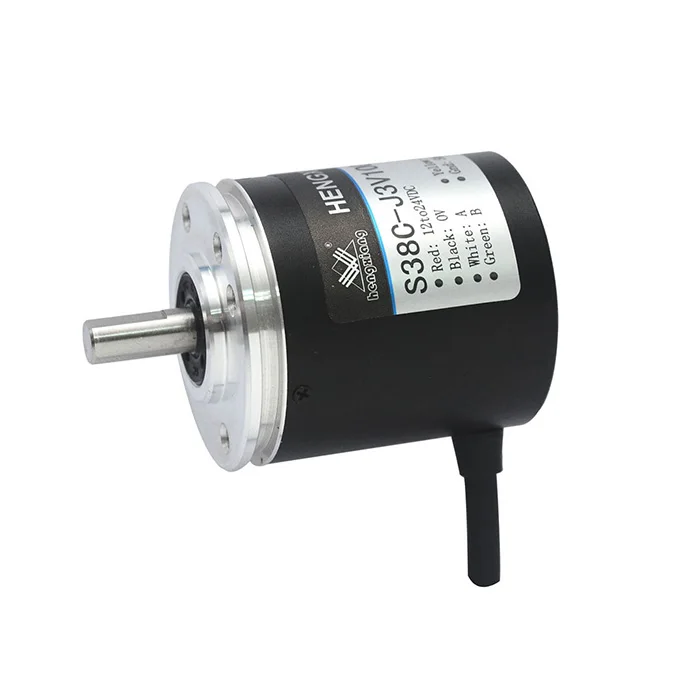

S38-L Series Incremental Type Solid Shaft Roatry Encoder electric photocell









1) Advantages







1, Certification: CE & ISO9001 & SGS.

2, Feature: general, small volume,various output mode, long service life, low price etc.

3, Application: textile industry, packing machinery, production line, etc., for automation control.









2) S38-L Series Specification







Items

Basic parameters

External dimensions

External diameter: 38mm

Thickness: 34mm

Shaft diameter: 6mm(D type, customize by require)

Resolution

50;60;100;200;250;256;300;360;400;450;500;512;600;

700;720;800;900;1000;1024;1200;2000;2048;2500

Output phase

Phase A,B,Z

Supply voltage

DC5V & DC12~24V

Outlet type

Cable out from back

Cable out from side

Output mode

Collector open circuit output

Voltage output

Push-pull output

Difference output

Long cable drive (C=26LS31)

Long cable drive (E=RT7272)

Environmental temperature

Operating temperature: -10~+70° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity

Operating and storage: 35~85%RH (non-condensing)

Protection grade

IP50 &IP65

Cable length

1M (cable length could be added appropriately by

        require, but it need payment individually)

Shell

Aluminium

package

Carton box

Weight

About 120g (with package)
