S15-DM Magnetic Encoder

FOB Reference Price:Get Latest Price
US $1-100 / Pieces | 1 Piece/Pieces PCS (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
S15- DM
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
Analog Sensor
Brand:
HENGXIANG
External diameter:
15mm
Shaft diameter:
5mm
Thickness:
17.5mm
Shaft angle (deg):
360 (endless)
Protection grade:
IP50
Resolution:
Infinitesimal(Analog output)
Supply voltage:
DC5V
Weight:
about 10g
Supply Ability
Supply Ability:
100000 Piece/Pieces per Day Month
Packaging & Delivery
Packaging Details
Carton box.
Port
Shanghai
Lead Time :
General hours a week, quantity depends!

Specifications

1,Brand: HENGXIANG
2,Ex. dia. 5mm, shaft dia.5mm
3,Resolution:Infinitesimal(Analog output)
4,super small, low price
5, 10g

S15-DM Magnetic Encoder (solid shaft)







1) Advantages



1, Certification: CE & ISO9001 & SGS.

2, Feature: super small, logical compact configuration, easy to installation, etc.

3, Application: minisize motor, small instrument, etc., for automation control.







2) S15-DM Specification





Items

Basic parameters

External dimension



External diameter: 15mm



Thickness: 17.5mm



Shaft diameter: 5mm

Supply voltage

DC5V

Effective linearity range (deg)

±50

Resolution

Infinitesimal (Analog output)

Shaft angle (deg)

 360 (endless)

Individual Linearity (%)

±1.5

Operating temperature(°C)

-10~+60 °C

Protection grade

IP50

Shell

Aluminium

package

Carton box (100 PCS/ box)

Weight

About 10g



3) Pictures

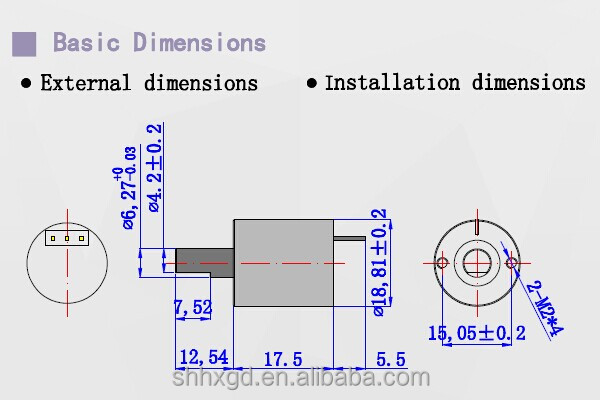

4) Machine Dimension




Main products

07







Certifications


 (1)







Packaging & Shipping




More Information

More detail information, welcome to visit our website: http://www.shhxgd.com
