K38- Series rotary en coder cheap price from china factory

FOB Reference Price:Get Latest Price
US $20-50 / Pieces | 1 Piece/Pieces PCS (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
K38- Series rotary en coder cheap price from china factory
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
square-wave signa
Brand:
HENGXIANG
External diameter:
38mm
Shaft diameter:
8/5/6/10mm
Thickness:
34mm
Resolution:
up to 2500PPR
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC12-24V
Output mode:
wire out from side & wire out from back
Wire length:
1M
Weight:
about 140g (with package)
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Day Month
Packaging & Delivery
Packaging Details
Carton box.
Port
Shanghai
Lead Time :
general time a week, quantity depends!

K38- Series rotary en coder cheap price from china factory







1) Advantages





1, Certification: CE & ISO9001 & SGS.

2, Feature: general, small volume,various output mode, long service life, low price etc.

3, Application: textile industry, packing machinery, production line, etc., for automation control.







2) K38- Series Specification





Items

Basic parameters

External dimensions

External diameter: 38mm

Thickness: 34mm

Shaft diameter: 10mm;8mm;6mm;5mm

Resolution

50;60;100;200;250;256;300;360;400;450;500;512;600;

700;720;800;900;1000;1024;1200;2000;2048;2500

Output phase

Phase A,B,Z

Supply voltage

DC5V & DC12~24V

Outlet type

Cable out from back

Cable out from side

Output mode

Collector open circuit output

Voltage output

Push-pull output

Difference output

Long cable drive (26LS31)

Long cable drive ( RT7272)

Environmental temperature

Operating temperature: -10~+70° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity

Operating and storage: 35~85%RH (non-condensing)

Protection grade

IP50 &IP65

Cable length

1M (cable length could be added appropriately by

       require, but it need payment individually)

Shell

Aluminium

package

Carton box

Net weight

About 140g (with package)

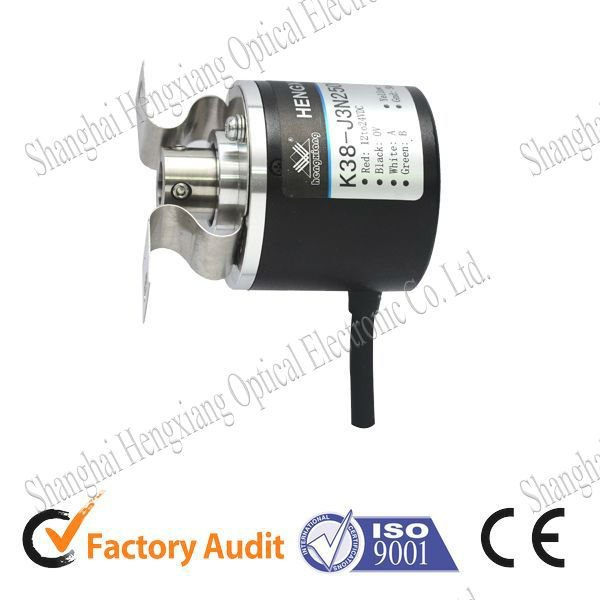

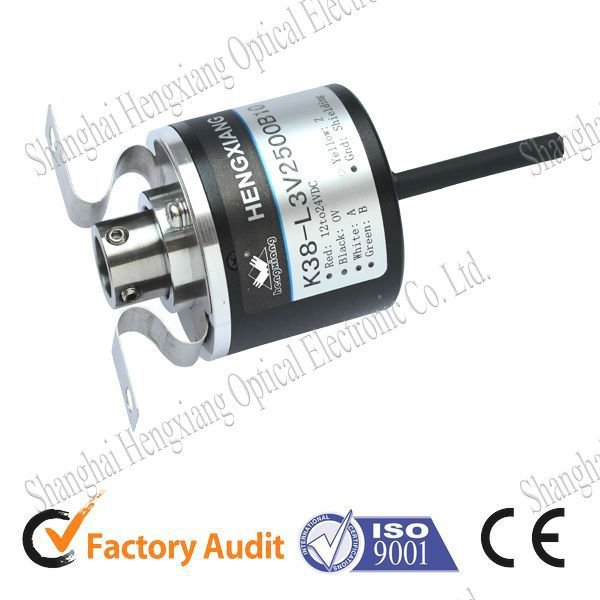

3) Pictures











4) More information, welcome to visit our website: www.shhxgd.com
