K50- Series dissolve oxygen sensor thickness 34mm IP50

FOB Reference Price:Get Latest Price
US $20-40 / Piece | 1 Piece/Pieces K50- Series dissolve oxygen sensor thickness 34mm IP50 (Min. Order)
Supply Ability:
100000 Piece/Pieces per Day K50- Series dissolve oxygen sensor thickness 34mm IP50
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
K50- Series dissolve oxygen sensor thickness 34mm IP50
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
square-wave signal
Brand:
HENGXIANG
External diameter:
50mm
Hollow shaft diameter:
8 /10 /12 /14 mm
Thickness:
34mm
Installation dimension:
55mm
Resolution:
up to 23040P/R
Supply voltage:
DC5V & DC8-30V
Protection grade:
IP50
Wire length:
1M (it can be added as requirement)
Weight:
about 200g (with package)
Packaging & Delivery
Packaging Details
Carton box K50- Series dissolve oxygen sensor thickness 34mm IP50
Delivery Time
3-5 days

K50- Series dissolve oxygen sensor thickness 34mm IP50









1) Advantages





1, Certification: CE & ISO9001 & SGS.

2, Feature: logical compact configuration, various output mode and diameter of shaft,

                    easy to install, etc.

3, Application: textile industry, packing machinery,production line, etc., for automation control.







2) K50- Series Specification





Items Basic parameters
External dimensionsExternal diameter: 50mm
Thickness: 34mm
Shaft diameter: 8mm/10mm/12mm/14mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000
 8192;10000;11520;16384;20000;23040
Output phasePhase A,B,Z or A B Z antipole
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side (with metal sleeve)
Cable out from back (for blind hole type only)
Output modeCollector open circuit output
Voltage output
Push-pull output
Difference outputLong line drive (26LS31)
Compatible RS422
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50
Cable length1M (cable length could be added appropriately by
       require, but it need payment individually)
Shell Aluminium
packageCarton box
Net weight About  200g (with package)
Certification CE

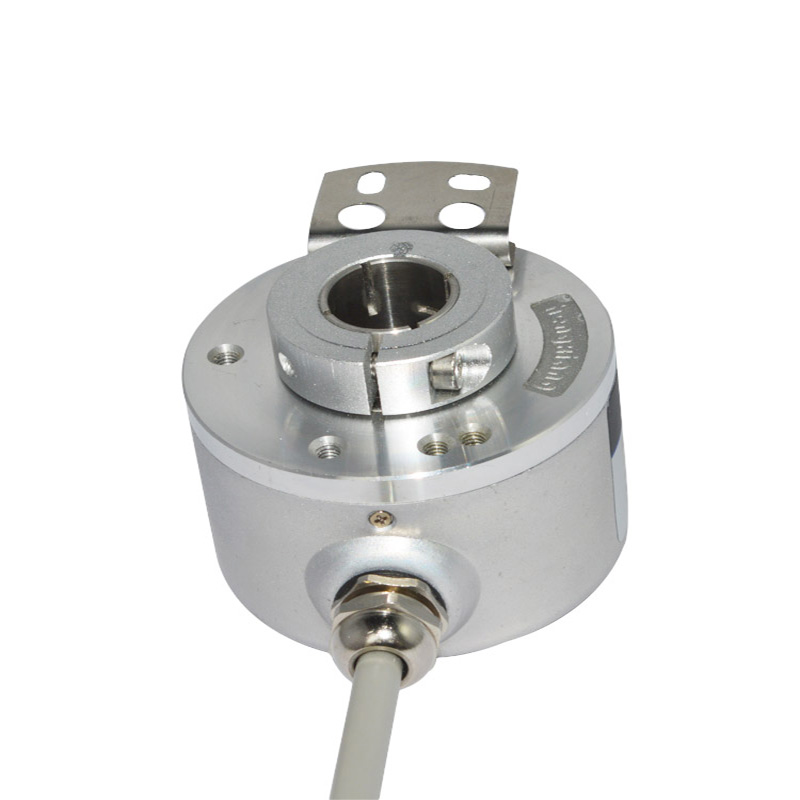

3) Pictures











FAQ

1) What specifications are needed before buying encoder?



         .External Diameter



         .Shaft Diameter



         .Phase & Revolution



         .Circuit Output Mode



         .Power Supply Voltage





2) How to choose a right encoder by yourself ?



      .Exact Specification Describtion





      .Check The Installation Dimensions





      . Contact Supplier to get more details





3) Why choose "Hengxiang" Brand Encoder



        .MOQ:1 PCS only





       .cheap price and big discount





       .short lead time----3days for samples,7-10days for mass production





       .perfect quality---we have CE,ISO,SGS certification.



                                       1year warranty   life-long technical support

4) How to order ?



            .You are welcome t o click  &
               To get the latest quotation right now!!!





5) Your Comapy Official Website?



            .You For More information,please freely visit our official website:http://www.shhxgd.com
