10mm rotary switch encoder- K38-J Series Hollow Shaft Encoder

FOB Reference Price:Get Latest Price
US $15-30 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
10mm shaft encoder K38-J Series
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
square-wave signa
Brand:
HENGXIANG
External diameter:
38mm
Hollow shaft diameter:
8/5/6/10mm
Installation dimension:
45mm
Resolution:
up to 2500PPR
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC12-24V
Outlet type:
wire out from side
Wire length:
1M (it can be added as requirements)
Weight:
about 140g (with package)
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day for 38mm bore shaft encoder
Packaging & Delivery
Packaging Details
Carton box for 10mm shaft encoder
Port
shanghai
Lead Time :
3 days after full paid

K38-J Series Incremental Type Hollow Shaft Rotary Encoder







1) Advantages





1, Certification: CE & ISO9001 & SGS.

2, Feature: general, small volume,various output mode, long service life, low price etc.

3, Application: textile industry, packing machinery, production line, etc., for automation control







2) K38-J Series Specification





Items

Basic parameters

External dimensions

External diameter: 38mm

Thickness: 34mm

Shaft diameter: 10mm;8mm;6mm;5mm

Resolution

50;60;100;200;250;256;300;360;400;450;500;512;600;

700;720;800;900;1000;1024;1200;2000;2048;2500

Output phase

Phase A,B,Z

Supply voltage

DC5V & DC12~24V

Outlet type

Cable out from back

Cable out from side

Output mode

Collector open circuit output

Voltage output

Push-pull output

Difference output

Long cable drive (26LS31)

Long cable drive ( RT7272)

Environmental temperature

Operating temperature: -10~+70° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity

Operating and storage: 35~85%RH (non-condensing)

Protection grade

IP50 &IP65

Cable length

1M (cable length could be added appropriately by

       require, but it need payment individually)

Shell

Aluminium

package

Carton box

Net weight

About 140g (with package)

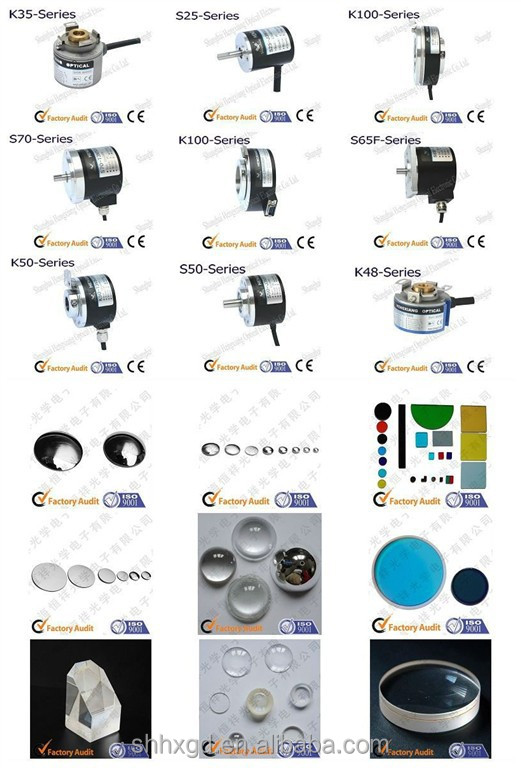

3) Pictures



 K38-J.jpgISO521X768521X848





 4) More information, welcome to visit our website: www.shhxgd.com
