Optical plano-convex lens

FOB Reference Price:Get Latest Price
US $1-5 / Pieces | 100 Piece/Pieces Optical plano-convex lens (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
Optical plano-convex lens
Material:
BK7, BK9, Silicon, Ge, sapphire, ect, BK7, BK9, Silicon, Ge, sapphire, ect
Usage:
Optical, Photoelectric device, Armarium, Teaching apparatus,etc.
Structure:
Plano-convex, Flat-convex, flat-concave, double-concave, concave-convex
Shape:
Plano, Concave, convex,flat
Brand:
HENGXIANG
Diameter:
According to custom's requirements
Precision:
N=2 , N=0.5 , B=40/20 , C=0.01
Center thickness:
According to custom's requirements
Focal length:
According to the drawing
Customized:
Yes
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month Optical plano-convex lens
Packaging & Delivery
Packaging Details
Package: Blister plate (100PCS/layer)
Port
Shanghai,shenzhen,xiamen,hongkong,etc
Lead Time :
within 10-30days







Specific parameters

Optical plano-convex lens





Plano-convex lenses are positive focal length elements that have one spherical surface and one flat surface. These lenses are designed for infinite conjugate (parallel light) use or simple imaging in non-critical applications. These optic lenses are ideal for all-purpose focusing elements.





MaterialBK7, BK9, Silicon, Ge, sapphire, ect.
Sizeaccording to your requires
Center thickness according to your requires
Diameter Tolerance±0.10
Thickness Tolerance±0.2 mm
Surface reflectance30% (per one surface)
Surface Quality (Scratch-Dig)60-40 (according to your requires)
Focal lengthaccording to your drawing
ShapePlano-convex
Centration<3′
Clear aperture  >= 90%central of the diameter
Wavelengthaccording to your requires
CoatingUncoated (according to your requires)
EdgesFine ground and beveled












Main Products







2 (4).jpg



3 (3).jpg



Product Description



Plano-Convex Lenses are Optical Lenses with a positive focal length. Plano-Convex Lenses are ideal for light collimation or for focusing applications utilizing monochromatic illumination, in a range of industries including industrial, pharmaceutical, robotics, or defense. PCX Lenses have one convex surface. For maximum efficiency, the second, plano (flat) surface should face the desired focal plane. Plano-Convex lenses are commonly used in a wide range of applications or industries.

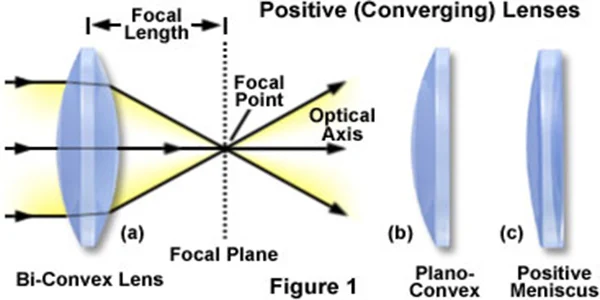

A plano-convex lens is a convergent lens with one flat surface and one convex surface. It focuses parallel light rays to a positive focal point, to form real images that can be manipulated using spatial filters. The asymmetry of plano-convex lenses reduces spherical aberration in applications where the image and object lie at unequal distances from the lens.

The maximum sharp focus is achieved when the curved portion of the lens is oriented toward the object. Plano-convex lenses are used for applying focus to an optical system, and collimating diverging light beams.

Plano-convex lenses have positive focal lengths, and an orientation critical to the image quality. Low spherical aberration is obtained if the lens is orientated such that the collimated beam enters or exits the curved surface, thereby making the plano side face towards the point source or focus.
