K100-Series incremental encoder 45mm bore hole rotary encoder

FOB Reference Price:Get Latest Price
US $20-50 / Pieces | 1 Piece/Pieces K100-Series incremental encoder 45mm bore hole rotary encoder (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
K100-Series incremental encoder 45mm bore hole rotary encoder
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
square-wave signal
Item Name:
K100-Series incremental encoder 45mm bore hole rotary encoder
Exteral diameter:
100mm
Hollow shaft diameter:
45/42/40/38/35/30mm
Thickness:
40mm (BQ) & 48mm (B)
Resolution:
up to 8192PPR
Protection grade:
IP50
Supply voltage:
DC5V & DC12V-24V
Output mode:
NPN & voltage output & difference output & push-pull output
Wire length:
1M (it can be added as requirements)
Weight:
about 670g(with package)
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month K100-Series incremental encoder 45mm bore hole rotary encoder
Packaging & Delivery
Packaging Details
Carton box for K100-Series incremental encoder 45mm bore hole rotary encoder
Port
Shanghai,shenzhen,hongkong,etc
Lead Time :
general time a week, quantity depends!

K100-Series incremental encoder 45mm bore hole rotary encoder



Our Services

24 hours aa.jpg online serive,Freely contact us right now!!!





Product Description





1) Advantages



1, Certification: CE & ISO9001 & SGS.

2, Feature: sturdy and durable, optional various output mode, long service life, low price, etc.

3, Application: elevator field, packing machinery, production line, etc., for automation control.



 2) K100- Series Specification



Items K100-Series incremental encoder hdmi to ip encoder ip video encoder
External dimensionsExternal diameter: 100mm
Thickness: 38mm
Shaft diameter: 30mm/35mm/38mm/40mm/42mm/45mm
Resolution 100;200;250;256;360;500;512;600;512;600;700;800;900
1000;1024;1200;2000;2048;2500;3000;3600;4096;5000;8192
Output phasePhase A,B,Z or A B Z antipole
Supply voltageDC5V & DC8-24V
OutlettypeSocket out from side
Output modeN=Collector open circuit output
V=Voltage output
F=Push-pull output
Difference outputC=Long line drive (26LS31)
E=Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50
Cable length1M (cable length could be added appropriately by
       require, but it need payment individually)
Shell Aluminium
packageCarton box
Net weight About 670g (with package)
Certification CE

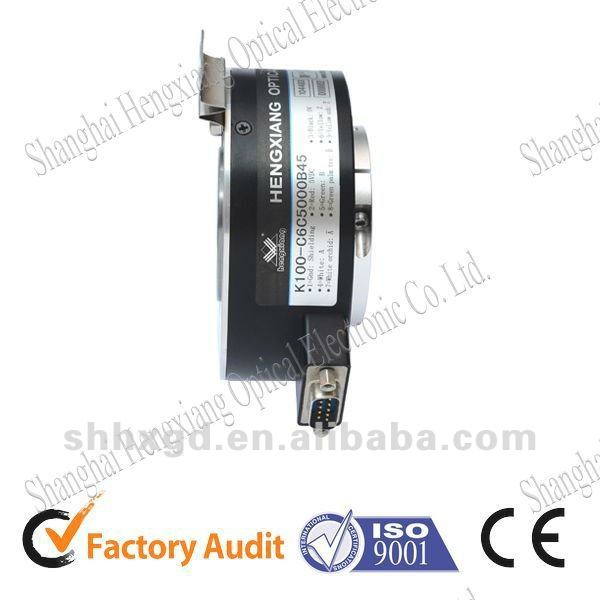

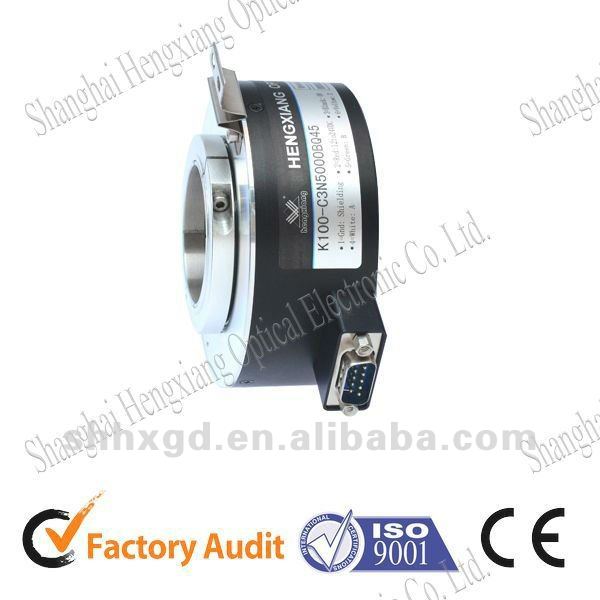

3) Pictures




Machine Dimension





K100 main dimension





Packaging & Shipping

Package:

Here is the packing details for encoders.


Shipping:

you can choose FedEX,DHL,EMS,UPS,TNT

Or specified

Certifications


FAQ

 Q:How to buy our products?



A:You are well welcome to  click   or   button from top page contact our online service!!!

More Information

More detail information, welcome to visit our website: http://www.shhxgd.com
