K50 replacement encoder for seiko rotary encoder seiko encoder

FOB Reference Price:Get Latest Price
US $20-50 / Pieces | 1 Piece/Pieces K50 replacement encoder for seiko rotary encoder seiko encoder (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG ENCODER
Model Number:
K50 replacement encoder for seiko rotary encoder seiko encoder
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
square-wave signal
Brand:
K50 replacement encoder for seiko rotary encoder seiko encoder
External diameter:
50mm
Hollow shaft diameter:
8 /10 /12 /14 mm
Thickness:
30mm
Installation dimension:
55mm
Resolution:
up to 10000P/R
Supply voltage:
DC5V & DC8-30V
Protection grade:
IP50&IP65
Wire length:
1M (it can be added as requirement)
Weight:
about 200g (with package)
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Month K50 replacement encoder for seiko rotary encoder seiko encoder
Packaging & Delivery
Packaging Details
Carton box for K50 replacement encoder for seiko rotary encoder seiko encoder
Port
Shanghai,Shenzhen,hongkong
Lead Time :
Within one week!!!

K50 replacement encoder for seiko rotary encoder seiko encoder





Our Services

24 hours aa.jpg online serive,Freely contact us right now!!!





Advantages



1, Certification: CE & ISO9001 & SGS.

2, Feature: logical compact configuration, various output mode and diameter of shaft, easy to install, etc.

3, Application: textile industry, packing machinery,production line, etc., for automation control.



K50- Series Specification



Items K50 replacement encoder for seiko rotary encoder seiko encoder

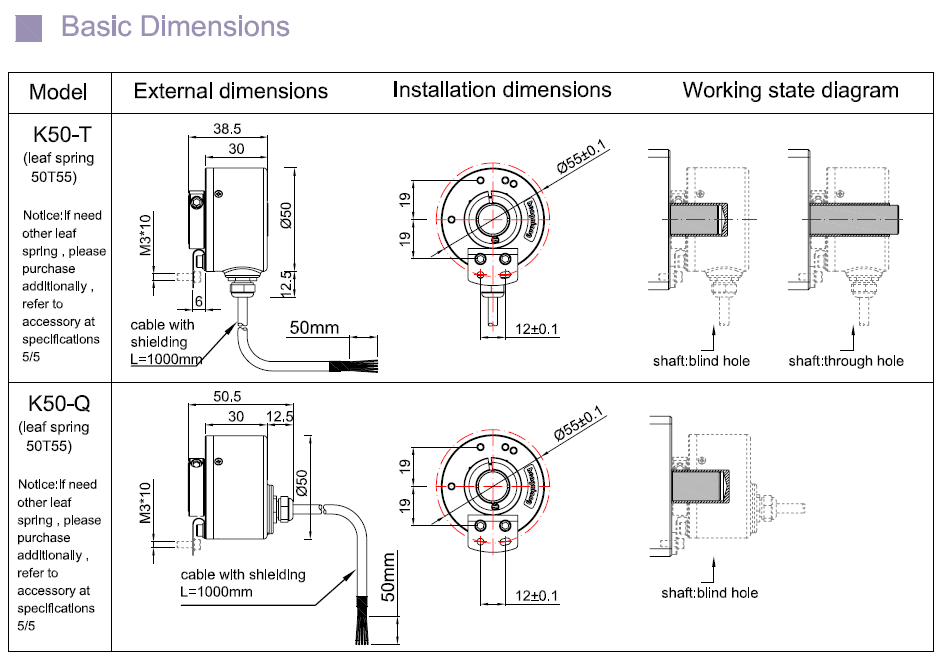

External dimensionsExternal diameter: 50mm
Thickness: 30mm
Shaft diameter: 8mm/10mm/12mm/14mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000
 8192;10000
Output phasePhase A,B,Z or A B Z antipole
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side (with metal sleeve)
Cable out from back (for blind hole type only)
Output modeCollector open circuit output
Voltage output
Push-pull output
Difference outputLong line drive (26LS31)
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50
Cable length1M (cable length could be added appropriately by
       require, but it need payment individually)
Shell Aluminium
packageCarton box
Net weight About  200g (with package)
Certification CE

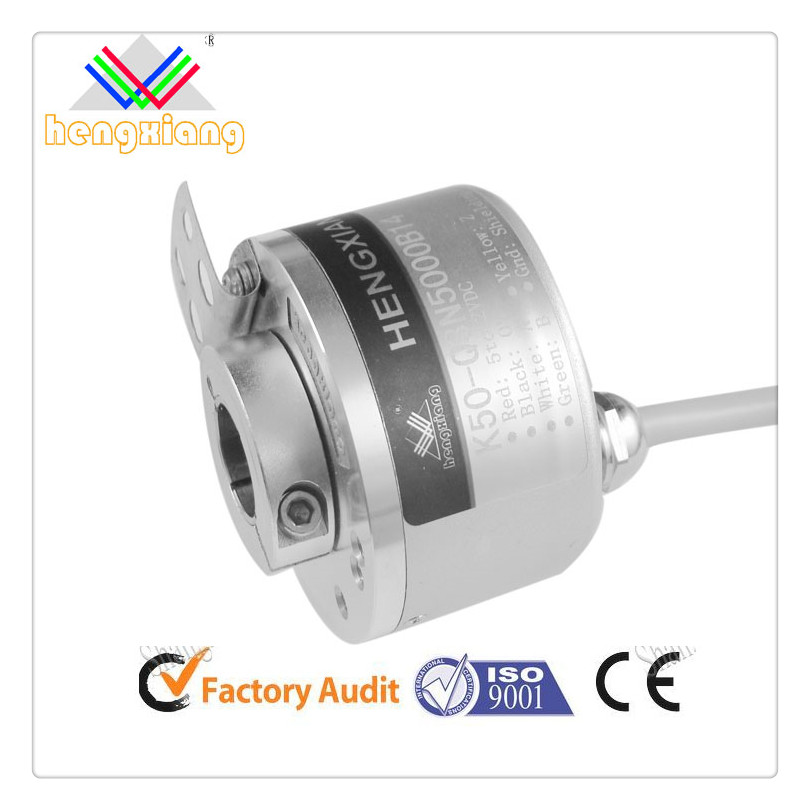

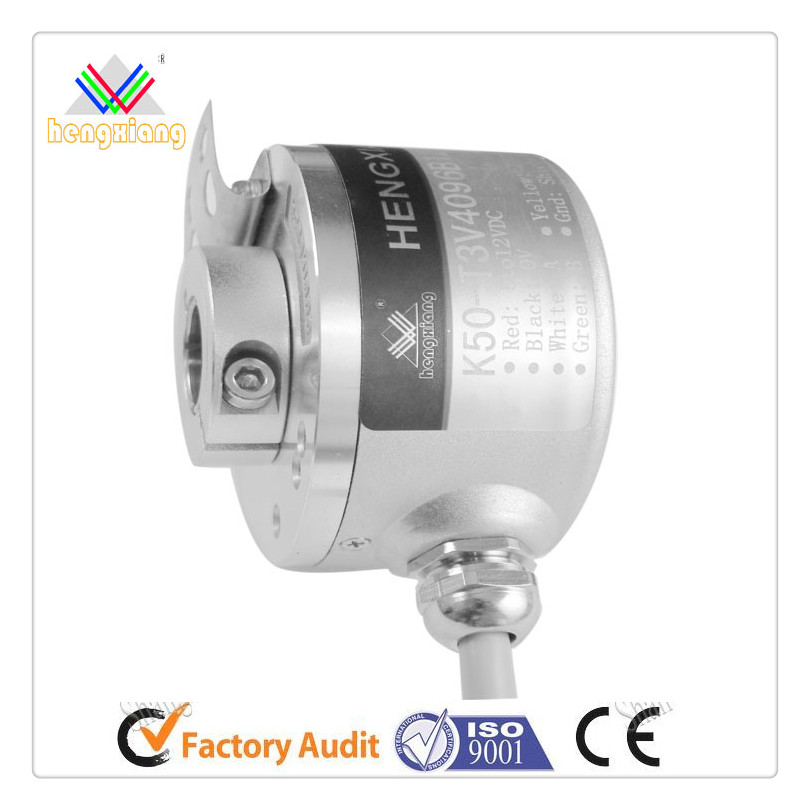

Main products Picture:



ENCODER K50.jpgK50 encoder.jpg















Packaging & Shipping



Encoder Package:

Here is the packing details for encoders.

Packing background.jpg

you can choose FedEX,DHL,EMS,UPS,TNT

Or specified

Company Information













Certifications

our certification.png







Related Encoders





FAQ

1) What specifications are needed before buying encoder?

         .External Diameter

         .Shaft Diameter

         .Phase & Revolution

         .Circuit Output Mode

         .Power Supply Voltage

2) How to choose a right encoder by yourself ?

      .Exact Specification Describtion

      .Check The Installation Dimensions

      . Contact Supplier to get more details

3) Why choose "Hengxiang" Brand Encoder

        .MOQ:1 PCS only

       .cheap price and big discount

       .short lead time----3days for samples,7-10days for mass production

       .perfect quality---we have CE,ISO,SGS certification.

                                       1year warranty   life-long technical support

4) How to order ?

            .You are welcome t o click  &
               To get the latest quotation right now!!!

5) Your Comapy Official Website?

            .You For More information,please freely visit our official website:http://www.shhxgd.cn
