S50 Shaft encoder 24v 5000ppr used in textile machinery

FOB Reference Price:Get Latest Price
US $10-40 / Pieces | 1 Piece/Pieces S50 Shaft encoder 24v 5000ppr used in textile machiner (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HEN GXIANG
Model Number:
S50 Shaft encoder 24v 5000ppr used in textile machinery
Usage:
Pressure Sensor
Theory:
Optical Sensor
Output:
square-wave signal
Item:
S50 Shaft encoder 24v 5000ppr used in textile machinery
External diameter:
50mm
Shaft diameter:
8mm (D type)
Thickness:
30mm
Resolution:
up to 23040PPR
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC8-30V
Output mode:
NPN & voltage output & difference output
Wire length:
1M
Weight:
about 190g (with package)
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month S50 Shaft encoder 24v 5000ppr used in textile machiner
Packaging & Delivery
Packaging Details
Carton Box for S50 Shaft encoder 24v 5000ppr used in textile machinery
Port
Shanghai,shenzhen,hongkong,etc
Lead Time :
3-5 days

S50 Shaft encoder 24v 5000ppr used in textile machinery











1) Advantages



1, Certification: CE & ISO9001 & SGS.

2, Feature: sturdy and durable, optional various output mode, long service life, low price, etc.

3, Application: textile industry, packing machinery,production line, etc., for automation control.





2) S50- Series Specification:





Items S50 Shaft encoder 24v 5000ppr used in textile machinery
External dimensionsExternal diameter: 50mm
Thickness: 30mm
Shaft diameter: 8mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000
 8192;10000;11520;16384;20000;23040
Output phasePhase A,B,Z or A B Z antipole
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side
Cable out from back
Socket out from back
Output modeCollector open circuit output
Voltage output
Push-pull output
Difference outputLong line drive (26LS31)
compatible RS422
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50 & IP65
Cable length1M (cable length could be added appropriately by
       require, but it need payment individually)
Shell Aluminium
packageCarton box
Net weight About  190g (with package)
Certification CE

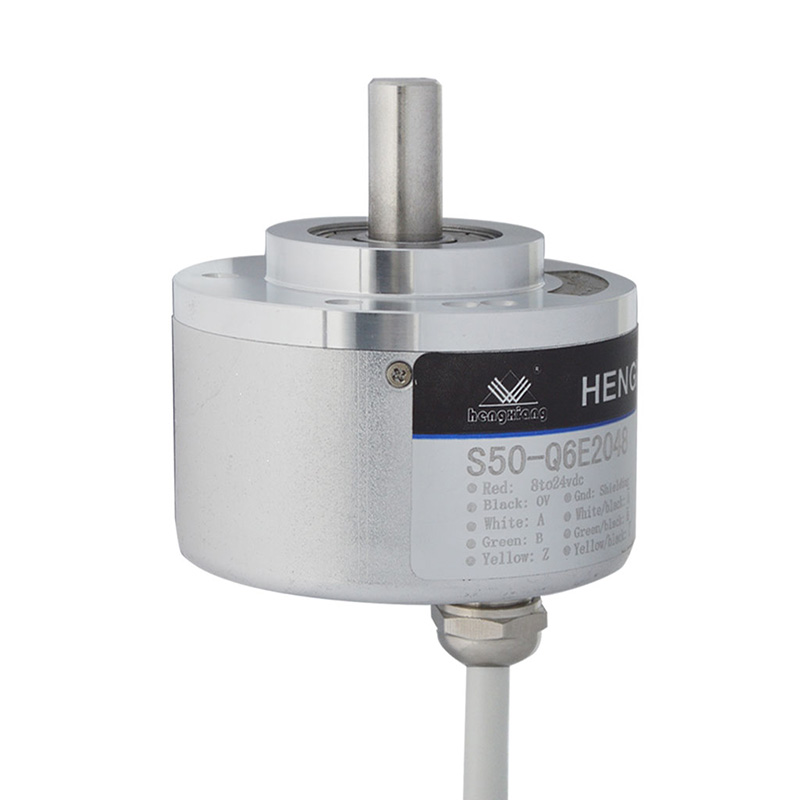

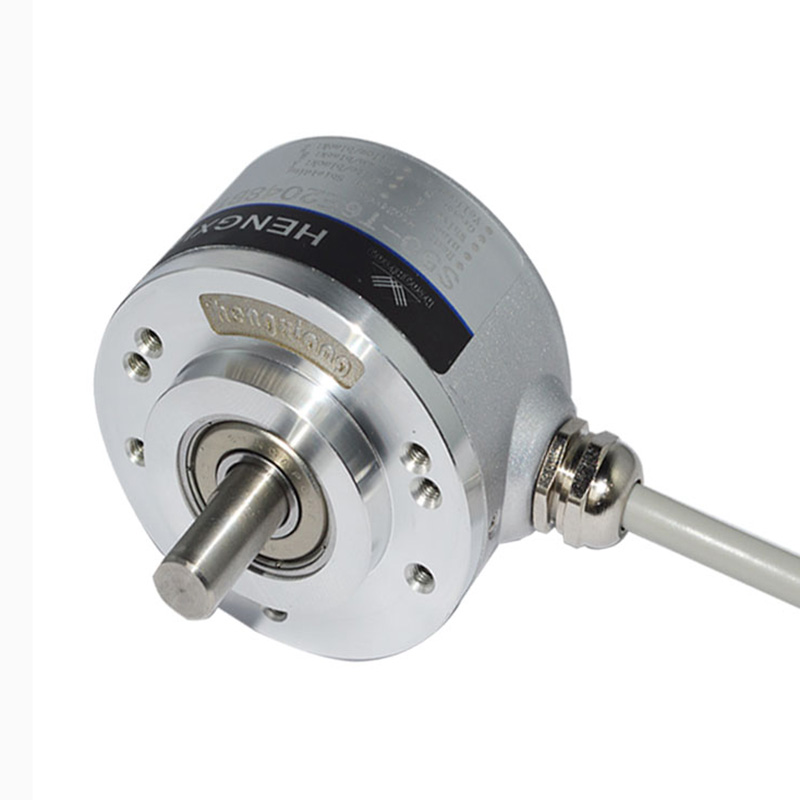

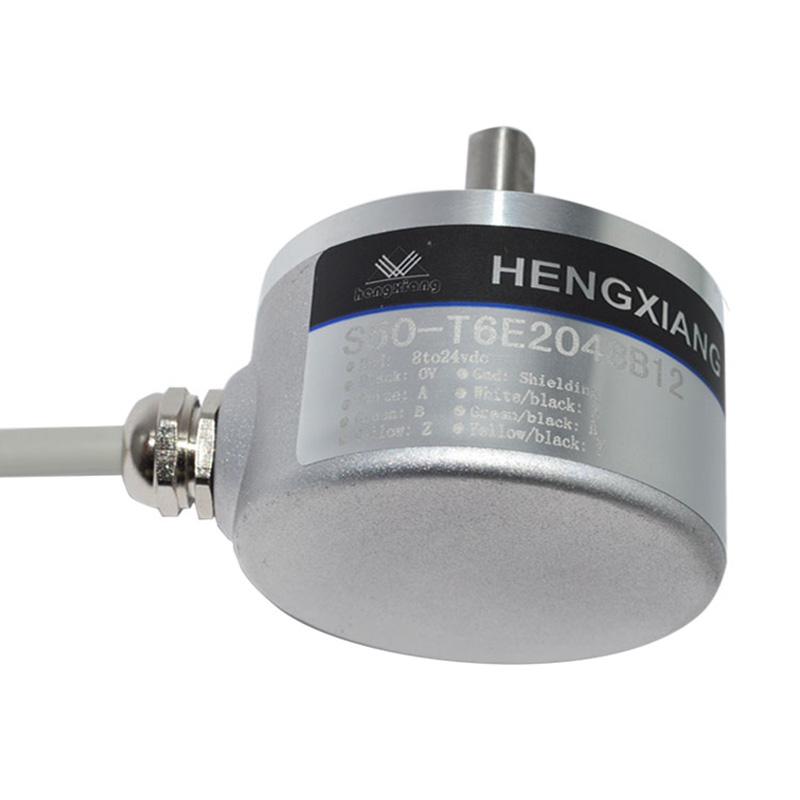

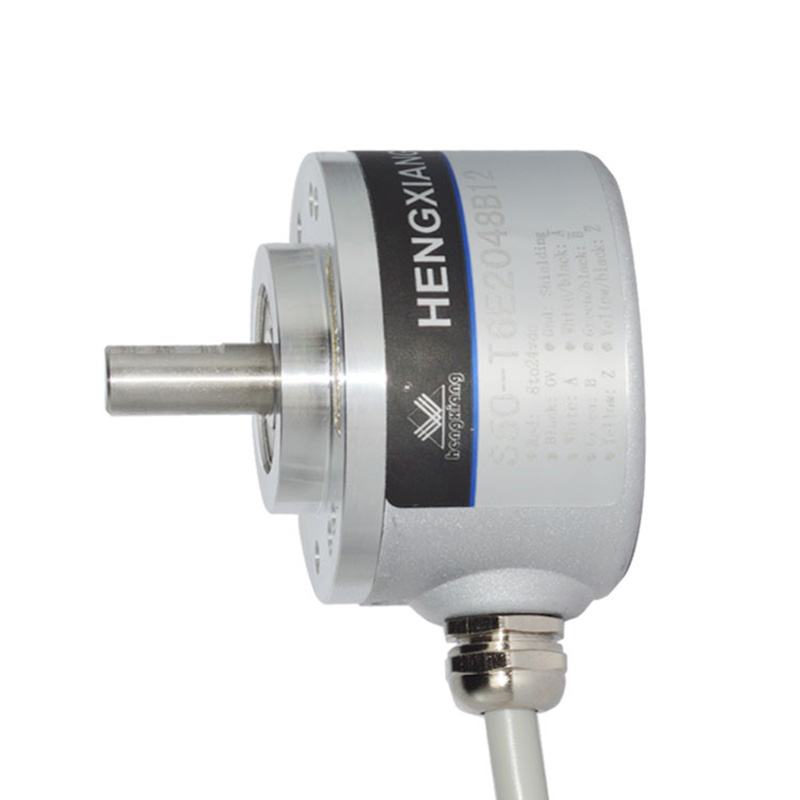

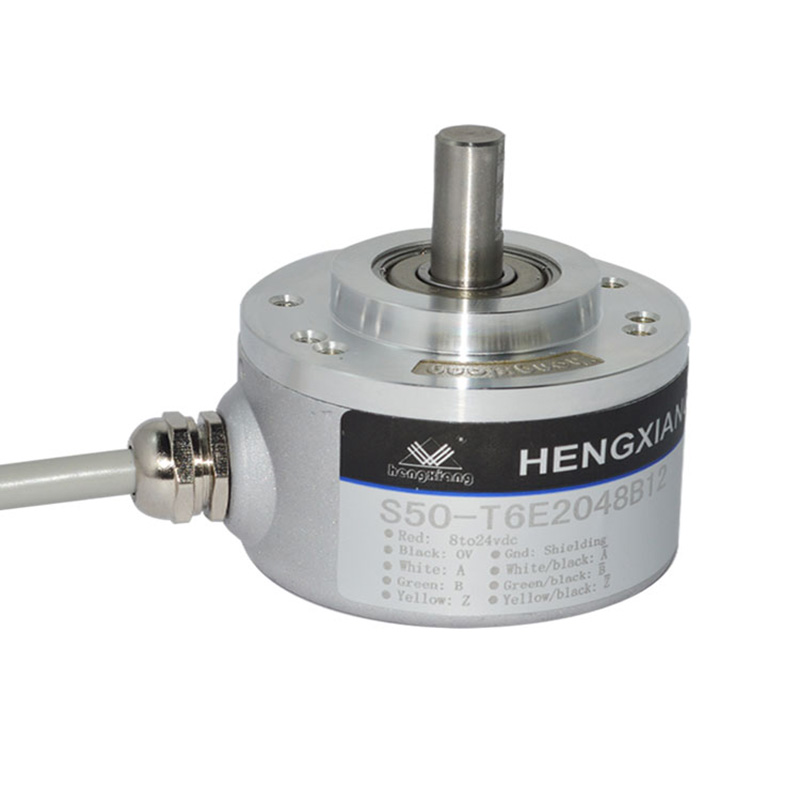

3)Pictures:








4) Encoder details:







S50
