elevator door sensor

FOB Reference Price:Get Latest Price
US $20-50 / Piece | 1 Piece/Pieces elevator door sensor (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month
Port:
Shanghai,shenzhen,hongkong,etc
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
elevator door sensor
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
Other
Item Name:
elevator door sensor
Exteral diameter:
100mm
Hollow shaft diameter:
45/42/40/38/35/30mm
Thickness:
40mm (BQ) & 48mm (B)
Resolution:
up to 48000PPR
Protection grade:
IP50
Supply voltage:
DC5V & DC12V-24V
Output mode:
NPN & voltage output & difference output & push-pull output
Wire length:
1M (it can be added as requirements)
Weight:
about 670g(with package)
Packaging & Delivery
Packaging Details
Carton box for elevator door sensor
Delivery Time
3 days
Product Description





K100 Elevator Door Sensor





1) Advantages



1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control



2)Elevator Door Sensor Application





There are four primary types of elevator movement mechanisms: traction, hydraulic, vacuum and climbing. Sensors used in all types of elevator include infrared, level, current, load and sensors, limit switches and encoders. Encoders are used to detect motor’s rotation speed so as to control the motion and position of elevator car. Meanwhile, current sensors detect motor’s working current based on which the power of motor could be adjusted to a proper level. Leveling sensors transmits floor number of car to control center in order to activate brake mechanism and make sure elevator stops desired level.





3) Sensor EncoderSpecification



Brandelevator door sensor
External dimensionsExternal diameter: 100mm
Thickness: 38mm
Shaft diameter: 30mm/35mm/38mm/40mm/42mm/45mm
Resolution 512;1000;1024;1200;2000;2048;2500;2880;3000;3600;4096;5000;8192;5760;10000;11520;12000;20000;24000;40000;48000
Output phasePhase A,B,Z ,A-,B-,Z-
Supply voltageDC5V & DC8-30V
OutlettypeSocket out from side
Output modeCollector open circuit output(NPN &PNP)
Voltage output
Push-pull output
Line drive (26LS31)
Line drive (RT7272)
Line drive (Compatible RS422)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50
Cable length1000mm
Shell Aluminium
PackageCarton box
Net weight About 670g (with package)
Certification CE

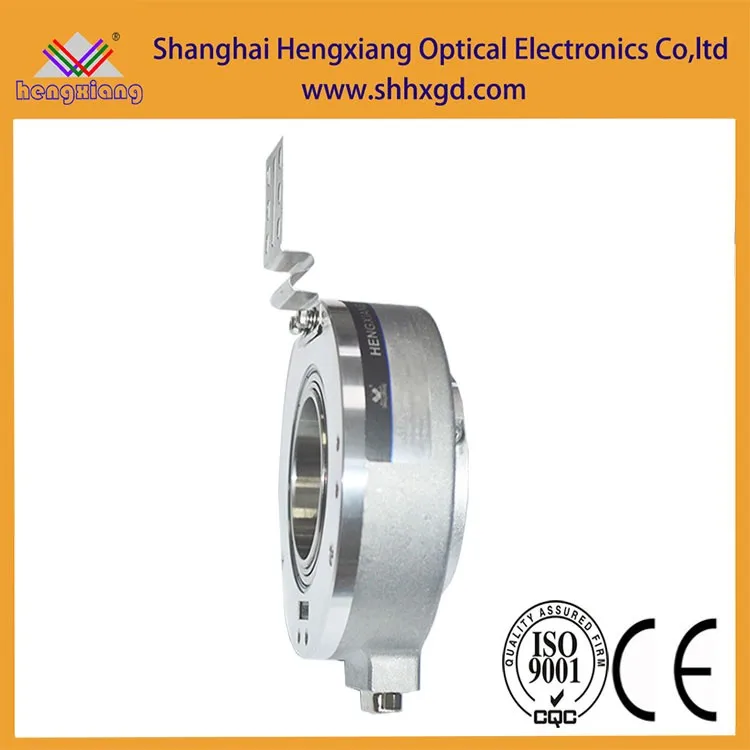

3)Encoder Pictures









5)Machine Dimension









6)China sensor factory introduction



Shanghai Hengxiang Optical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entity integrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture.



    After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery, Carpentry machinery,Injection machinery,Vulcanizate equipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients .



    "HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project.



     Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.



     Sincerely welcome all customers to visit our company, to review and custom "HengXiang" brand products .
