hollow shaft encoder KN40 Position Control Encoder Voltage output,DC12-24V

FOB Reference Price:Get Latest Price
US $15-30 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
KN40
Usage:
Other
Theory:
Other
Output:
Other
Brand:
HENGXIANG
External diameter:
40mm
Thickness:
20mm
Shaft diameter:
6mm/8mm/9mm/9.52mm/10mm
Phase:
ABZUVW
Supply voltage:
DC5V&DC8-30V
Cable length:
500mm
Shell:
Aluminum
Package:
Carton box
Net weight:
About 90g
Supply Ability
Supply Ability:
10000 Piece/Pieces per Year hollow shaft encoder KN40 Position Control Encoder Voltage
Packaging & Delivery
Packaging Details
15*15*12 carton box hollow shaft encoder KN40 Position Control Encoder Voltage output,DC12-24V
Port
Shanghai
Lead Time :
3-5 days
Product Description





hollow shaft encoder KN40 Position Control Encoder Voltage output,DC12-24V





1) Advantages



1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control



2) KN35- Series Encoder Specification



BrandHENGXIANG
External Dimensions External diameter: 40mm
Thickness: 20mm
Shaft diameter:6mm/8mm/9mm/9.52mm/       10mm
Resolution

1024;2048;4096;5000;8192;10000;16384;20000



1000/6; 1000/8; 1024/6; 1024/8;  2048/6;             2048/8;  2500/6; 2500/8

Output Phase Phase A,B,Z,U,V,W,
Supply voltageDC5V & DC8-30V
Outlet typeCable out from side
Output ModeCollector open circuit output(NPN &PNP)
Voltage output
Line Driver (26LS31)
Line Driver ( 26C31)
Line Driver(IC-HD7)
Environmental temperature Operating temperature:-20~+100° (Non icing)
Storage temperature: -25~+110° (Non icing)
Environmental humanity Operating and storage: 35~90%RH (non-condensing)
Protection gradeIP40
Cable length500mm (cable length could be added )
Shell Aluminium
PackageCarton box
Net weight About  90g (with package)
Certification CE

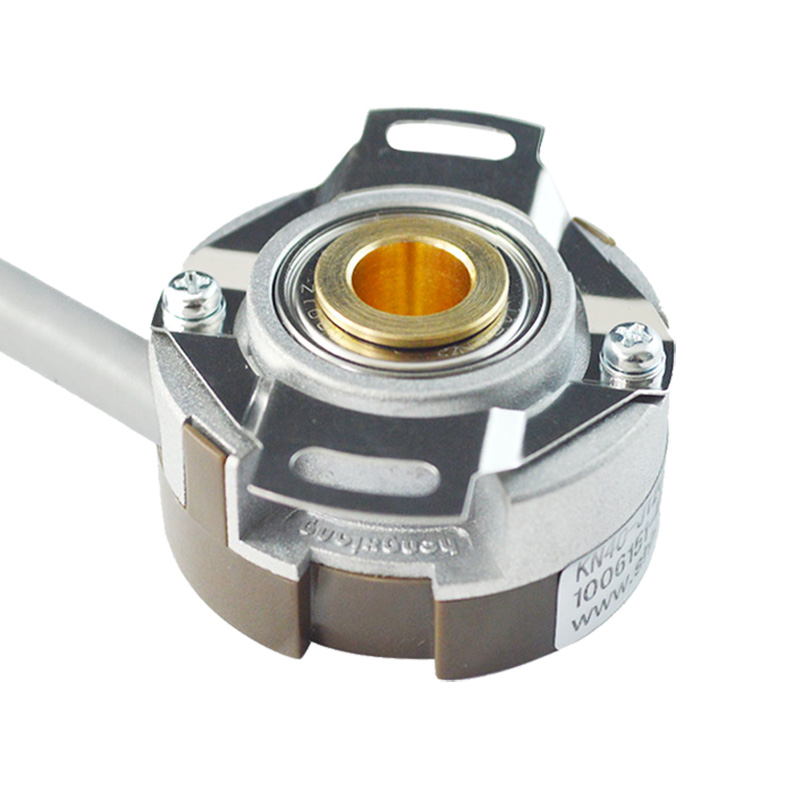

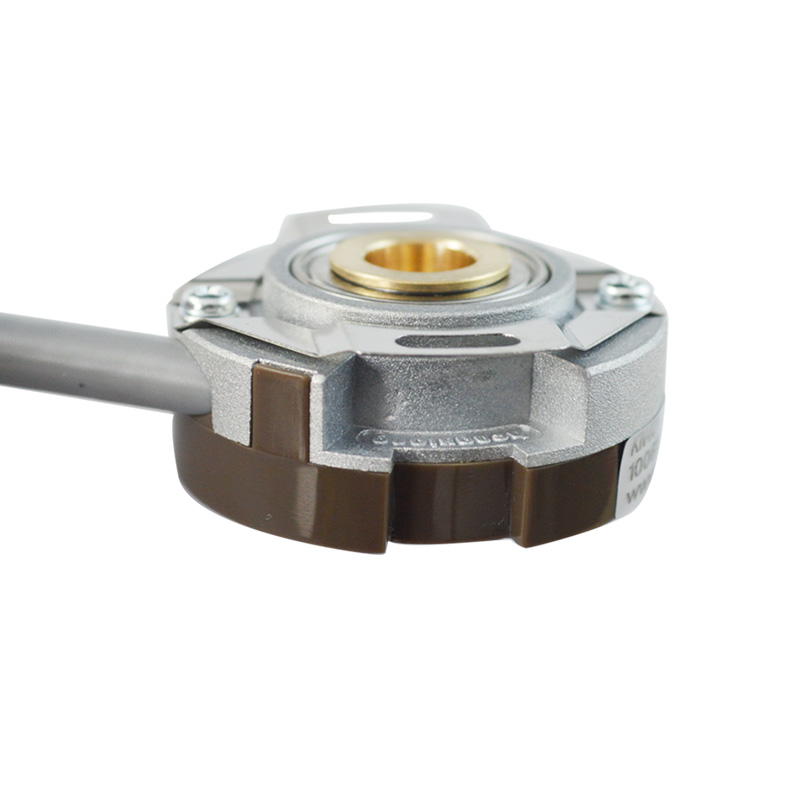

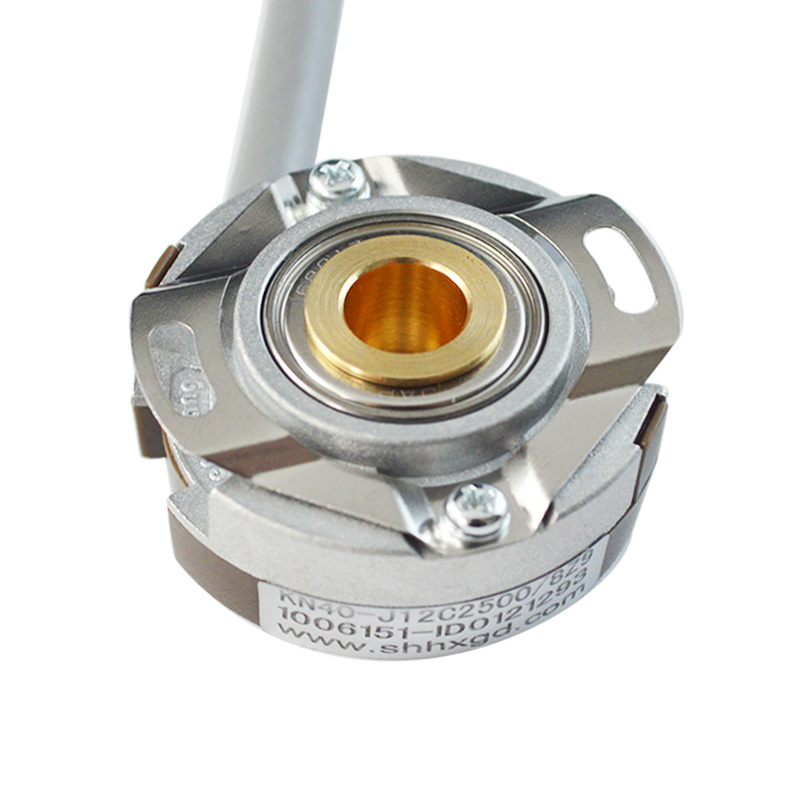

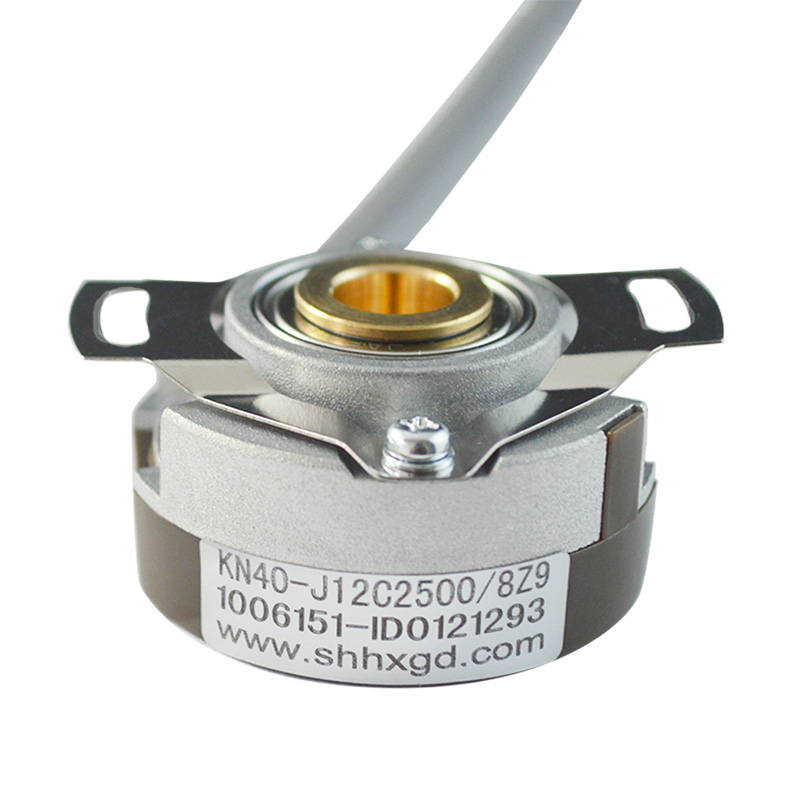

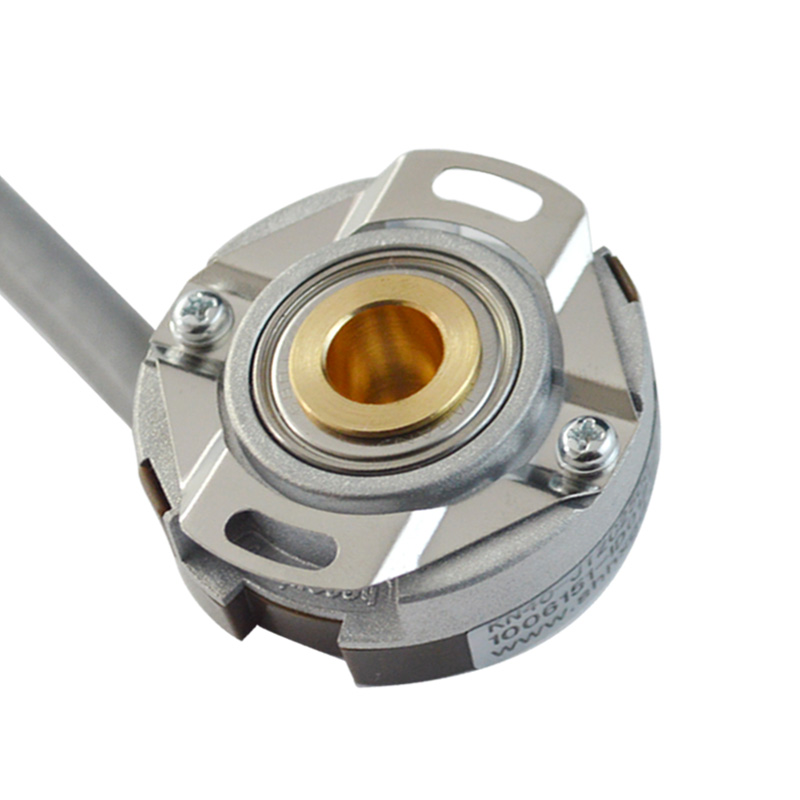

3) Pictures






4)Machine Dimension

Position Control Encoder






Company Information
Position Control Encoder

Shanghai Hengxiang Optical Electronics Co,ltd

located on Shanghai, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design.

Certifications
Position Control Encoder

CERTIFICATE

Strength proof

All encoder products passed the inspection standards included CE,ISO9001-2008 with 100% quality Assurance.

Packaging & Shipping

PACKAGE:

Standard export carton box.

DELIVERY TIME:

3-5 days for sample orders.
7-10 days for mass production.

Position Control Encoder
FAQ

Position Control Encoder

How can I get price?

Kindly confirm with model type first, such as outer diameter, shaft size, revolution, phase, circuit output mode,power supply voltage

What’s the Payment Terms?

T/T would be better with quick transfer and few bank fees. Also Western Union is acceptable.
Citibank and American Bank both OK,including credit card

Are you a factory or trading company?

We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us

How can I get a sample?

We warm welcome all our customers to inquiry a sample.
once confirmed model type, our factory would offer a sample immediately!

What’s your advantage?

Over16 Years experience of producing encoders with the most professional techniques and team. More advantage in price
.
