photoelectric rotary encoder with key way encoder fs2 68a15z

FOB Reference Price:Get Latest Price
US $10-50 / Piece | 1 Piece/Pieces photoelectric rotary encoder with key way encoder fs2 68a15z (Min. Order)
Supply Ability:
100000 Piece/Pieces per Day photoelectric rotary encoder with key way encoder fs2 68a15z
Port:
Shanghai,Shenzhen,Hongkong,etc
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
encoder fs2 6815z
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
Square-wave signal
ITEM:
encoder fs2 6815z
External diameter:
65mm
Shaft diameter:
15mm
Thickness:
58.5mm
Resolution:
up to 23040P/R
Protection grade:
IP50 & IP65
Optional:
DC5V & DC12V-24V
Output type:
wire out from side (with metal sleeve)
Wire length:
1M
Weight:
about 590g (with package)
Packaging & Delivery
Packaging Details
Carton box for photoelectric rotary encoder with key way encoder fs2 68a15z
Delivery Time
3 days

photoelectric rotary encoder with key way encoder fs2 68a15z





1) Advantages





1, Certification: CE & ISO9001 & SGS.

2, Feature: sturdy and durable, easy to install with flange, optional various output mode, long service life, etc.

3, Application: numerical control machine, textile industry, packing machinery, etc., for automation control







2) SC65F-T Series Specification





Items

HENGXIANG SC65F-T Series photoelectric rotary encoder with key way

External dimensions

External diameter: 65mm(flange 68*68*7)

Thickness: 59mm

Shaft diameter: 15mm (keyway 5*5)

Resolution

50;60;100;200;250;256;300;360;400;450;500;512;600;

700;720;800;900;1000;1024;1200;2000;2048;2500;

3000;3600;4096;5000

Output phase

Phase A,B,Z

Supply voltage

DC5V & DC12~24V

Outlettype

Cable out from side(with metal sleeve)

Socket at side

Output mode

Collector open circuit output

Voltage output

Push-pull output

Difference output

Long line drive( 26LS31)

Long line drive( RT7272)

Environmental temperature

Operating temperature: -10~+70° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity

Operating and storage: 35~85%RH (non-condensing)

Protection grade

IP50 & IP65

Cable length

1M (cable length could be added appropriately by

        require, but it need payment individually)

Shell

Aluminium

package

Carton box

Net weight

About 590g (with package)

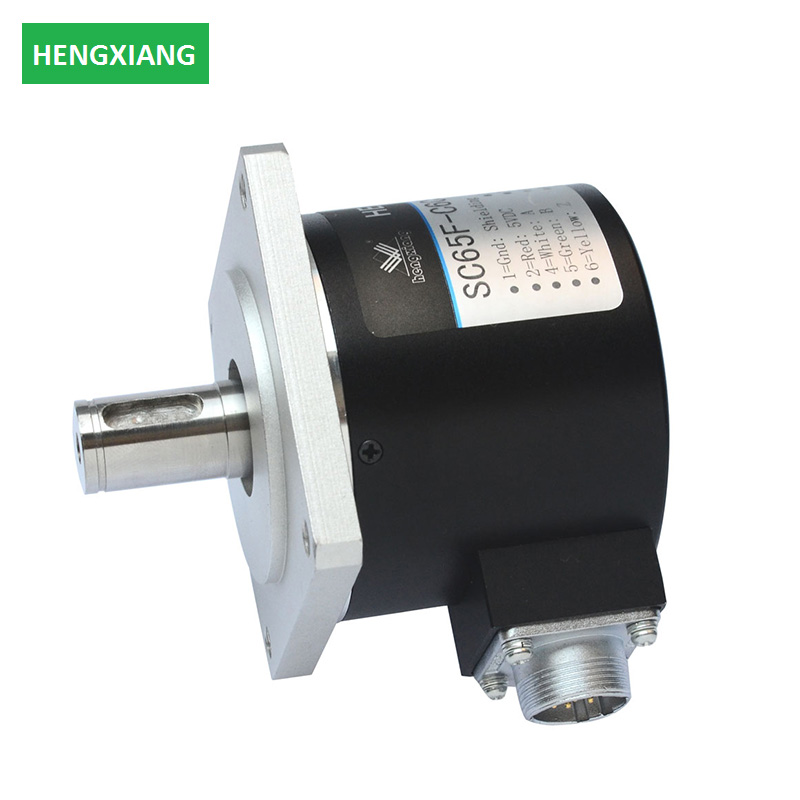

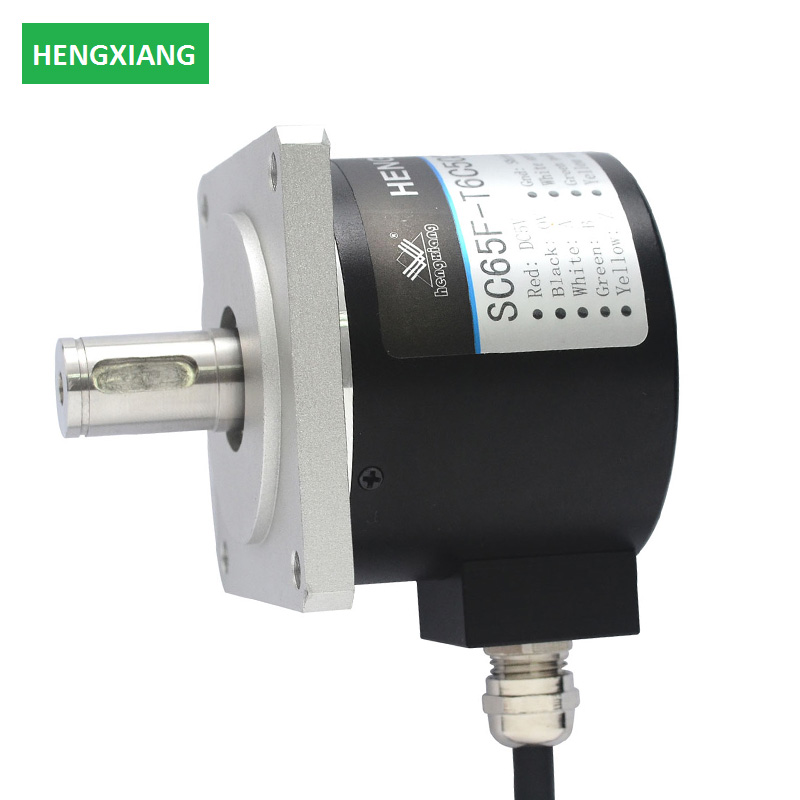

 3) Pictures









Machine Dimension
