auto sensor,encoder sensor for 500,rotary sensors sealed

FOB Reference Price:Get Latest Price
US $20-50 / Pieces | 1 Piece/Pieces auto sensor,encoder sensor for 500,rotary sensors sealed (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
auto sensor,encoder sensor for 500,rotary sensors sealed
Usage:
Pressure Sensor
Theory:
Optical Sensor
Output:
square-wave signal
Brand:
HENGXIANG
External diameter:
25mm
Shaft diameter:
4mm (D type)
Thickness:
30mm
Resolution:
up to 600P/R
Protection grade:
IP50
Supply voltage:
DC5V & DC12-24V
Wire length:
1M (it can be added as requirements)
Weight:
about 50g (with package)
Outlet type:
wire out from side
Supply Ability
Supply Ability:
100000 Piece/Pieces per Day auto sensor,encoder sensor for 500,rotary sensors sealed
Packaging & Delivery
Packaging Details
Carton box for auto sensor,encoder sensor for 500,rotary sensors sealed
Port
Shanghai,shenzhen,hongkong,etc
Lead Time :
General hours a week, quantity depends!

 auto sensor,encoder sensor for 500,rotary sensors sealed







Product Description





1) Advantages





1, Certification: CE & ISO9001 & SGS.

2, Feature: small, compact configuration, durable and easy to install, etc.

3, Application: subminiature motor, small instrument, etc., for automation control.









2) S25-J Series Specification







Items

Basic parameters

External dimensions

External diameter: 25mm

Thickness: 30mm

Shaft diameter:4mm(D type)

Resolution

36;50;60;100;200;250;300;360;400;500;512;600

Output phase

Phase A,B,Z

Supply voltage

DC5V & DC12~24V

Outlet type

Cable out from back

Cable out from side

Output mode

Collector open circuit output

Voltage output

Difference output (26LS31)

Environmental temperature

Operating temperature: -10~+70° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity

Operating and storage: 35~85%RH (non-condensing)

Protection grade

IP50

Cable length

1M (cable length could be added appropriately by

        require, but it need payment individually)

Shell

Aluminium

package

Carton box

Weight

About 50g (with package)

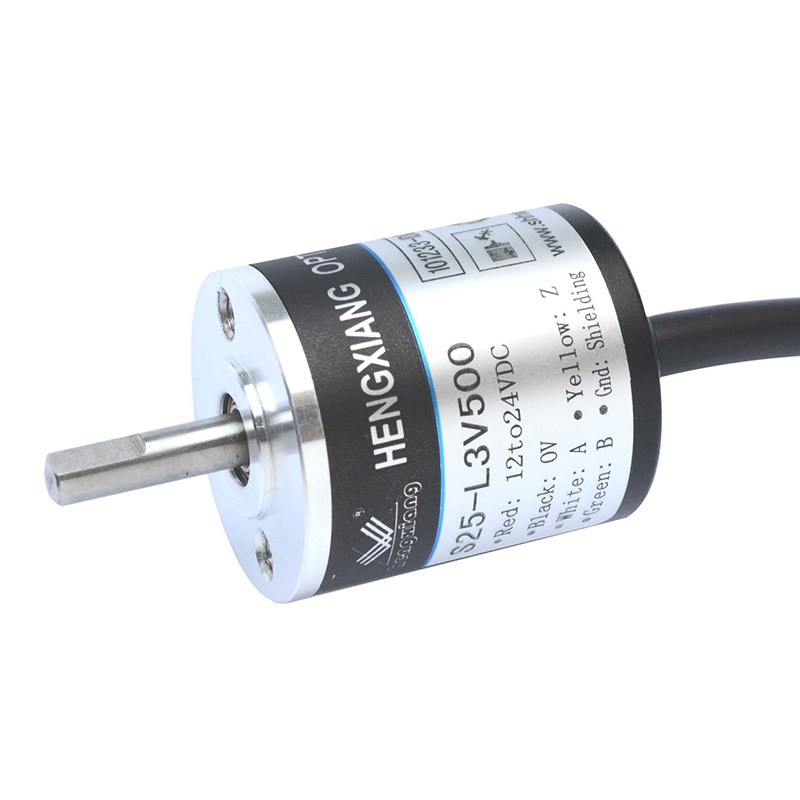

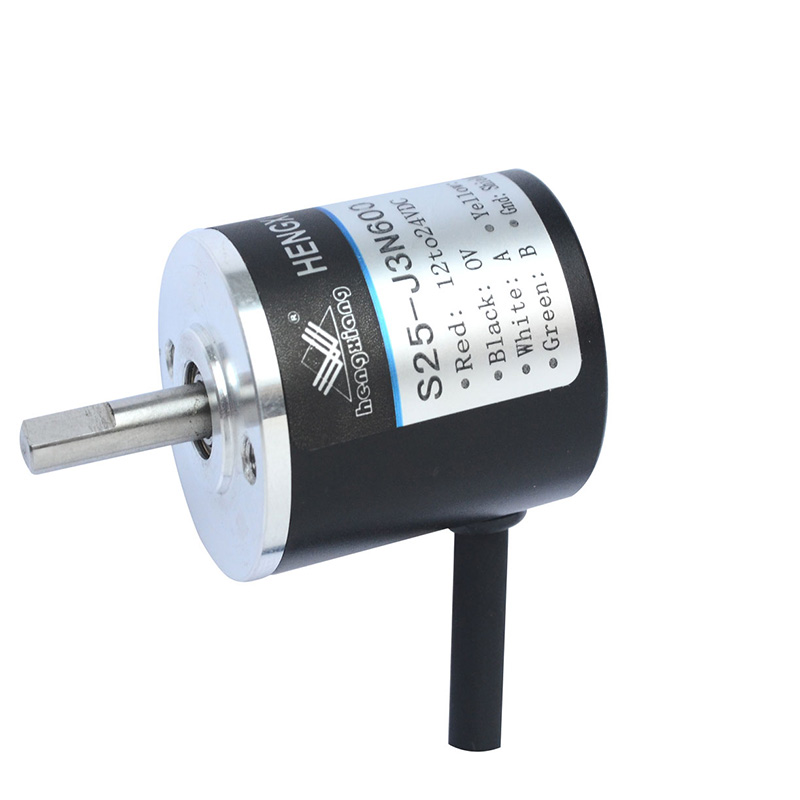

3) Pictures







4) Machine Dimension,



Encoder Application
