Solid flange encoder Industrial el63d encoder

FOB Reference Price:Get Latest Price
US $20-40 / Pieces | 1 Piece/Pieces Solid flange encoder Industrial el63d encoder (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
Solid flange encoder Industrial el63d encoder
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
square-wave signal
ITEM:
Solid flange encoder Industrial el63d encoder
External diameter:
65mm (flange 67*67)
Shaft diameter:
8mm & 10mm (D type)
Thickness:
59mm
Resolution:
up to 23040P/R
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC8V-30V
Outlet type:
socket at side
Cable length:
1M
Weight:
about 370g (with package)
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month Solid flange encoder Industrial el63d encoder
Packaging & Delivery
Packaging Details
Carton box for Solid flange encoder Industrial el63d encoder
Port
Shanghai
Lead Time :
3 Days

Solid flange encoder Industrial el63d encoder





1) Advantages



1, Certification: CE & ISO9001 & SGS.

2, Feature: easy to install with flange, optional various output mode, long service life, etc.

3, Application: textile industry, packing machinery, production line, etc., for automation control.



2) S65F- Series Specification



Items Solid flange encoder Industrial el63d encoder
External dimensionsExternal diameter: 65mm,Thickness: 52.5mm
Installation Size:48mm, Flange:67*67*7mm
Shaft diameter: 8mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000;   23040
Output phasePhase A,B,Z or A- B- Z-
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side with metal sleeve
Socket out from side
Output modeOpen Collector(NPN) circuit output
Voltage output
Push-pull output
Difference outputLong line drive (26LS31)
Compatible RS422
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50 & IP65
Cable length1M (cable length could be added appropriately by
       require, but it need payment individually)
Shell Aluminium
packageCarton box
Net weight About  190g (with package)
Certification CE

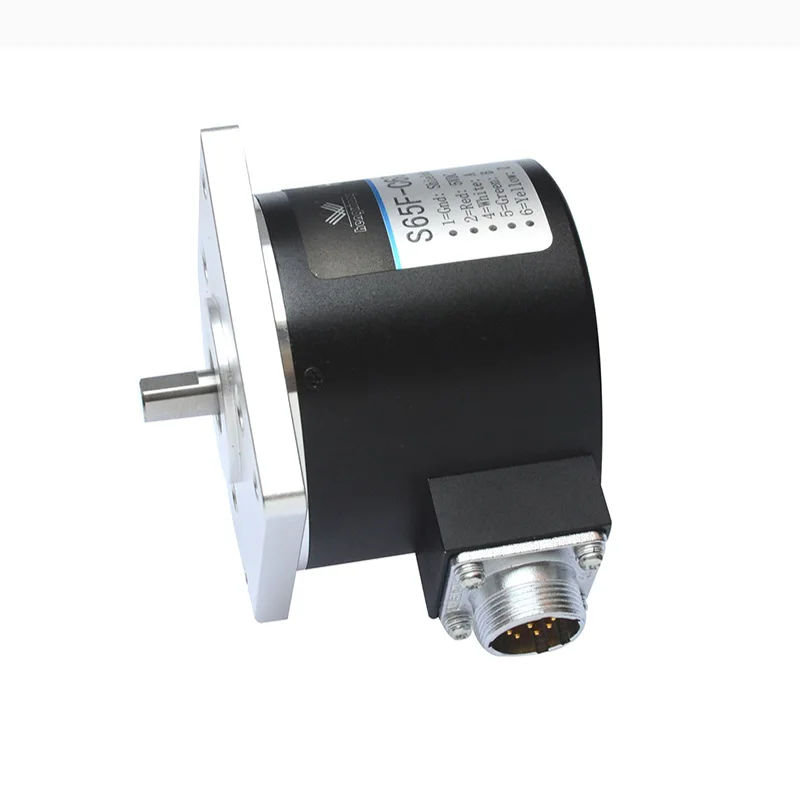

3) Pictures

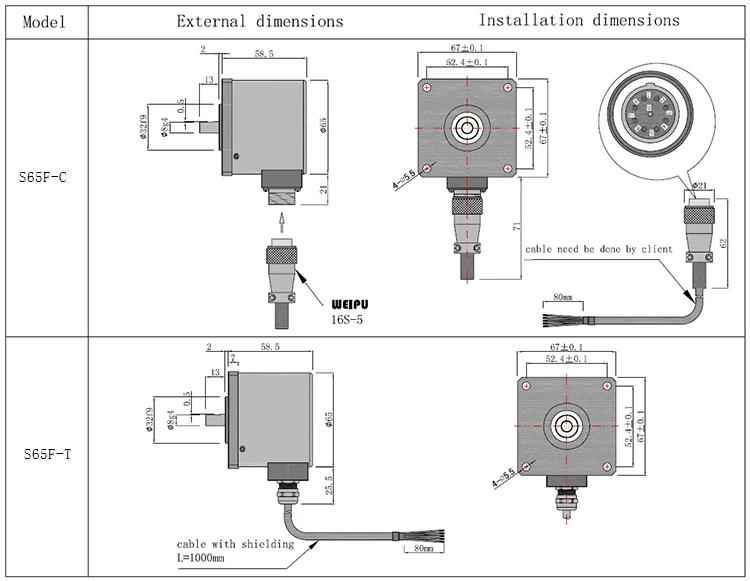

4) Machine Dimension,













Encoder Application



Company Information



Certifications



FAQ

1) What specifications are needed before buying encoder?

         .External Diameter

         .Shaft Diameter

         .Phase & Revolution

         .Circuit Output Mode

         .Power Supply Voltage

2) How to choose a right encoder by yourself ?

      .Exact Specification Describtion

      .Check The Installation Dimensions

      . Contact Supplier to get more details

3) Why choose "Hengxiang" Brand Encoder

        .MOQ:1 PCS only

       .cheap price and big discount

       .short lead time----3days for samples,7-10days for mass production

       .perfect quality---we have CE,ISO,SGS certification.

                                       1year warranty   life-long technical support

4) How to order ?

            .You are welcome t o click  &
               To get the latest quotation right now!!!

5) Your Comapy Official Website?

            .You For More information,please freely visit our official website:http://www.shhxgd.cn
