Micro rf-500tb-14415 dc motor encoder with mini shaft 2.5mm

FOB Reference Price:Get Latest Price
US $15-30 / Pieces | 1 Piece/Pieces Micro rf-500tb-14415 dc motor encoder with mini shaft 2.5mm (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG ENCODER
Model Number:
Micro rf-500tb-14415 dc motor encoder with mini shaft 2.5mm
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
square-wave signal
Brand:
Micro rf-500tb-14415 dc motor encoder with mini shaft 2.5mm
External diameter:
18mm
Shaft diameter:
2.5mm
Thickness:
18mm
Resolution:
up to 1600PPR
Protection grade:
IP40
Supply voltage:
DC5V & DC8-30V
Outlet type:
wire out from side
Wire length:
150mm
Weight:
about 20g (with package)
Supply Ability
Supply Ability:
100000 Piece/Pieces per Day Micro rf-500tb-14415 dc motor encoder with mini shaft 2.5mm
Packaging & Delivery
Packaging Details
Carton box for Micro rf-500tb-14415 dc motor encoder with mini shaft 2.5mm
Port
Shanghai
Lead Time :
3 days

Micro rf-500tb-14415 dc motor encoder with mini shaft 2.5mm





1) Advantages



1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control



2) S18- Series Encoder Specification



Items Micro rf-500tb-14415 dc motor encoder with mini shaft 2.5mm
External dimensionsExternal diameter: 18mm
Thickness: 18mm
Shaft diameter: 2.5mm
Resolution 36;50;60;100;200;250;256;360;400;500;1000;800;1600
Output phasePhase A,B,Z
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side
Output modeCollector open circuit output(NPN &PNP)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP40
Cable length150mm (cable length could be added appropriately by
       require, but it need payment individually)
Shell Aluminium
packageCarton box
Net weight About  20g (with package)
Certification CE

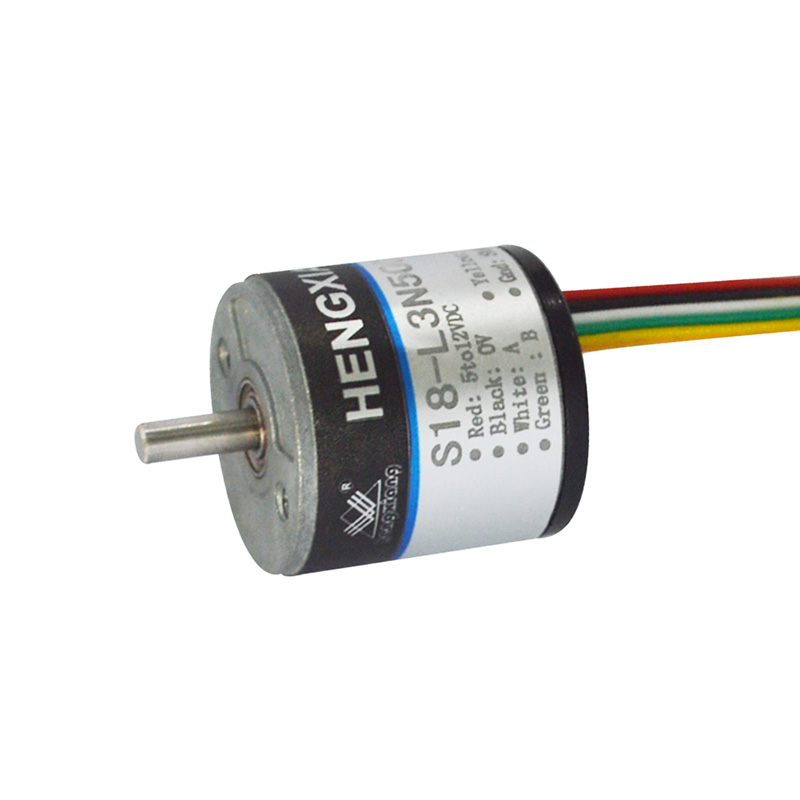

3) Pictures







4)Machine Dimension
