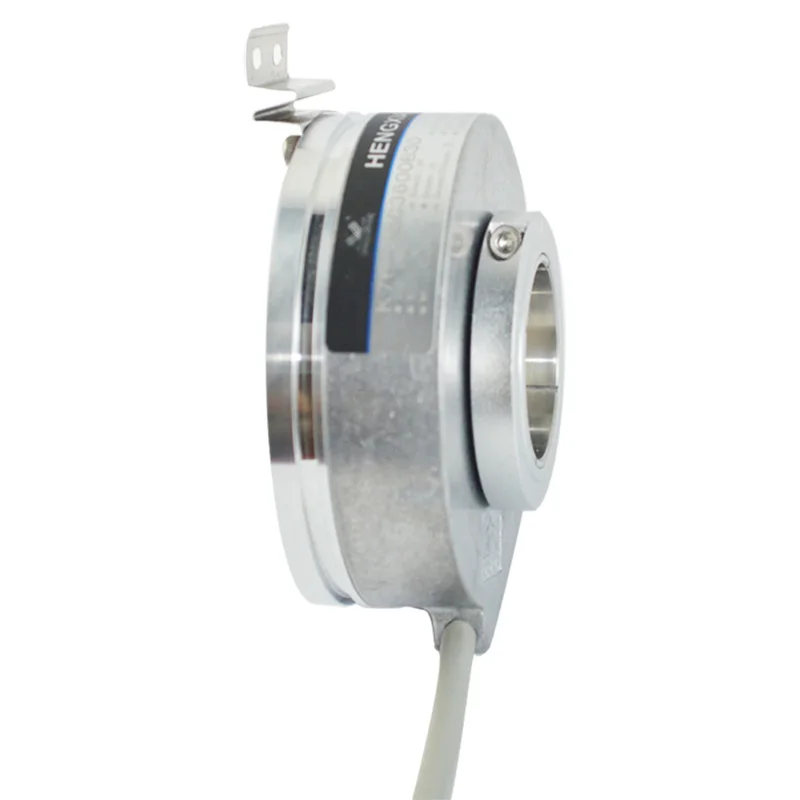

20mm hole absolute encoder outside diameter 76mm IP50

FOB Reference Price:Get Latest Price
US $20-50 / Pieces | 1 Piece/Pieces 20mm hole absolute encoder outside diameter 76mm IP50 (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
20mm hole absolute encoder outside diameter 76mm IP50
Usage:
Pressure Sensor
Theory:
Optical Sensor
Output:
square-wave signal
Item Name:
20mm hole absolute encoder outside diameter 76mm IP50
External diameter:
76.5mm
Shaft diameter:
30/28/25/22/20/18mm
Thickness:
28mm
Protection grade:
IP50
Optional:
DC5V & DC8V-30V
Outlet type:
wire out from side
Output mode:
NPN & voltage output & push-pull output & difference output
Weight:
about 370g
Wire length:
1M
Supply Ability
Supply Ability:
100000 Piece/Pieces per Day 20mm hole absolute encoder outside diameter 76mm IP50
Packaging & Delivery
Packaging Details
Carto box for 20mm hole absolute encoder outside diameter 76mm IP50
Port
Shanghai,Shenzhen,Hongkong,etc
Lead Time :
3-5 days

20mm hole absolute encoder outside diameter 76mm IP50









Product Description





 1) Advantages



1, Certification: CE & ISO9001 & SGS.

2, Feature: sturdy and durable, optional various output mode, long service life, low price, etc.

3, Application: elevator field, packing machinery, production line, etc., for automation control.

4.over 15 years encoder manufactuering experience

5.100% full inspect before shipment,according to strict

quality control system





2) K76-J Series Specification





Items 20mm hole absolute encoder outside diameter 76mm IP50
External dimensionsExternal diameter: 76.5mm
Thickness: 28mm
Shaft diameter: 18mm,20mm,22mm,25mm,28mm,30mm
Resolution 100;200;250;256;300;360;400;450;500;512;600;700;720;8000;

1000;1024;1200;2000;2048;2500;3000;3600;4096;5000;7200;8192;

14400;16384;28800;32768

Output phasePhase A,B,Z or A B Z antipole
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side
Output modeCollector open circuit output
Voltage output
Push-pull output
Difference outputLong line drive (26LS31)
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50
Cable length1M (cable length could be added appropriately by
       require, but it need payment individually)
Shell Aluminium
packageCarton box
Net weight About  370g (with package)
Certification CE









3) Pictures















Machine Dimension





Encoder Application



FAQ

1) What specifications are needed before buying encoder?

         .External Diameter

         .Shaft Diameter

         .Phase & Revolution

         .Circuit Output Mode

         .Power Supply Voltage

2) How to choose a right encoder by yourself ?

      .Exact Specification Describtion

      .Check The Installation Dimensions

      . Contact Supplier to get more details

3) Why choose "Hengxiang" Brand Encoder

        .MOQ:1 PCS only

       .cheap price and big discount

       .short lead time----3days for samples,7-10days for mass production

       .perfect quality---we have CE,ISO,SGS certification.

                                       1year warranty   life-long technical support

4) How to order ?

            .You are welcome t o click  &
               To get the latest quotation right now!!!

5) Your Comapy Official Website?

            .You For More information,please freely visit our official website:http://www.shhxgd.cn
