200ppr machine encoder 4mm solid shaft miniature encoder

FOB Reference Price:Get Latest Price
US $15-30 / Pieces | 1 Piece/Pieces 200ppr machine encoder 4mm solid shaft miniature encoder (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
200ppr machine encoder 4mm solid shaft miniature encoder
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
square-wave signal
Item:
200ppr machine encoder 4mm solid shaft miniature encoder
External diameter:
30mm
Shaft diameter:
4mm
Thickness:
30mm
Resolution:
up to 2500P/R
Supply voltage:
DC5V & DC8-30V
Protection grade:
IP50
Outlet type:
wire out from side & wire out from back
Wire length:
1M
Weight:
about 60g (with package)
Supply Ability
Supply Ability:
100000 Piece/Pieces per Day 200ppr machine encoder 4mm solid shaft miniature encoder
Packaging & Delivery
Packaging Details
Carton box for 200ppr machine encoder 4mm solid shaft miniature encoder
Port
Shanghai,Shenzhen,Hongkong,etc
Lead Time :
3-5 days

200ppr machine encoder 4mm solid shaft miniature encoder





Product Description





1) Advantages

      shaft encoder 4mm



1, Certification: CE & ISO9001 & SGS.

2, Feature: general, small, compact configuration, durable and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control.







2) S30- Series Specification

    shaft encoder 4mm



Items

200ppr machine encoder 4mm solid shaft miniature encoder

External dimensions

External diameter: 30mm

Thickness: 30mm

Shaft diameter: 4mm(D type)

Resolution

36;50;60;100;200;250;300;360;400;500;512;600;625;

720;1000;1024;1200;1250;1440;2000;2048;2500

Output phase

Phase A,B,ZA-B-Z-

Supply voltage

DC5V & DC8-30V

Outlet type

Cable out from back

Cable out from side

Output mode

Collector open circuit output

Voltage output

Push-pull output

Difference output (long wire drive 26LS31)

Environmental temperature

Operating temperature: -10~+70° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity

Operating and storage: 35~85%RH (non-condensing)

Protection grade

IP50

Cable length

1M (cable length could be added appropriately by

    require, but it need payment individually)

Shell

Aluminium

package

Carton box

Weight

About 60g (with package)

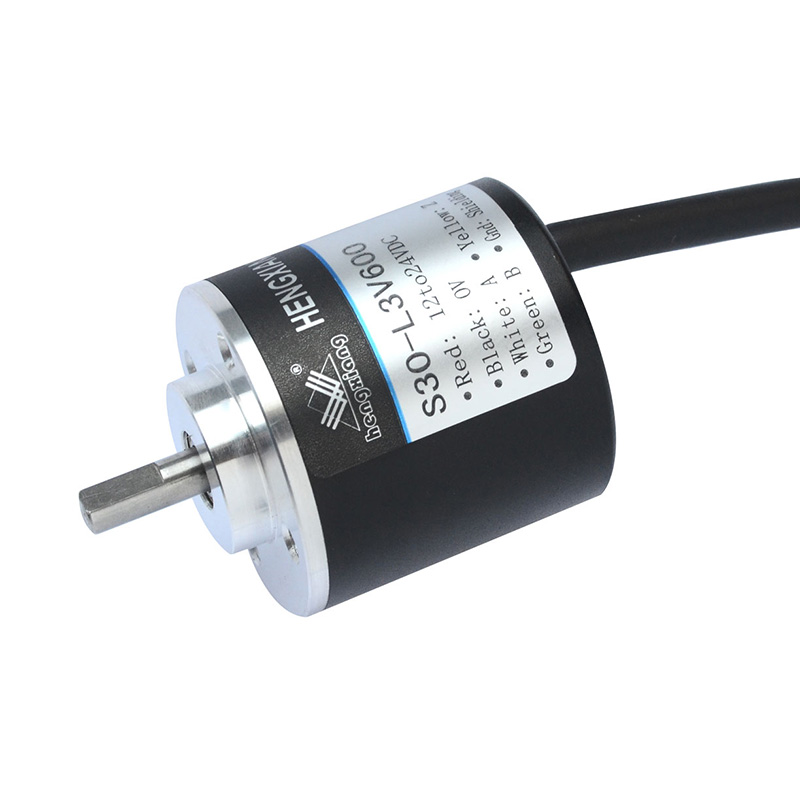

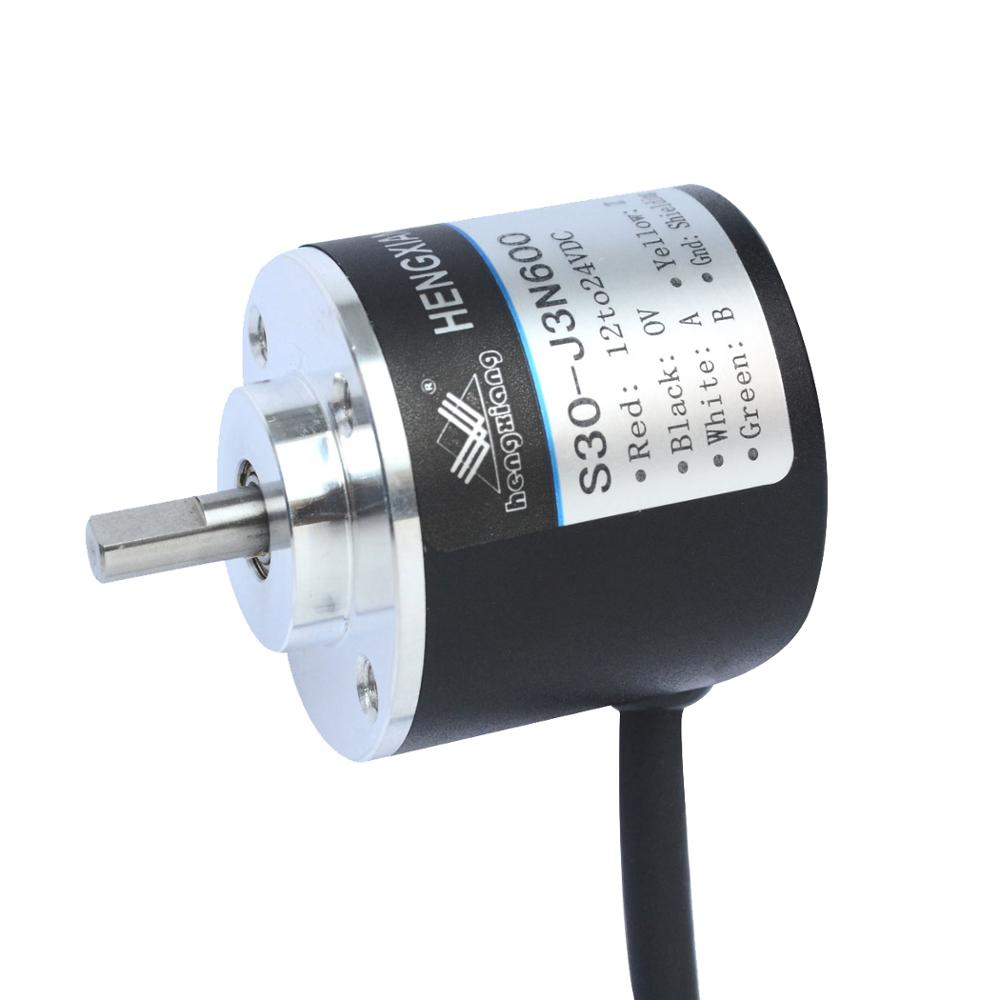

 3) Pictures









Encoder Application
