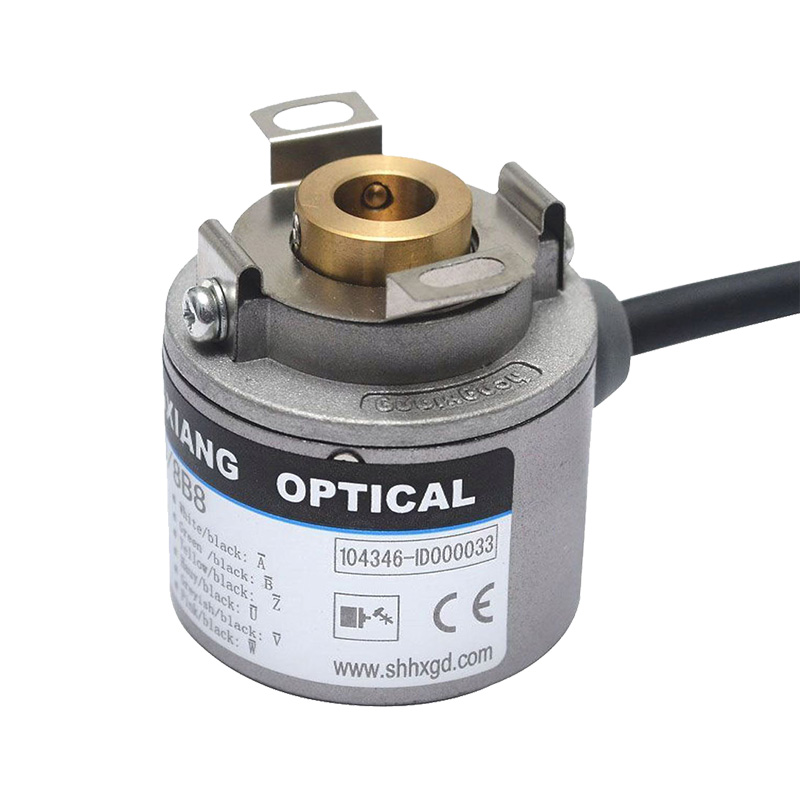

Servo motor motion encoder rotary encoder for automation 8 poles

FOB Reference Price:Get Latest Price
US $15-30 / Pieces | 1 Piece/Pieces Servo motor motion encoder rotary encoder for automation 8 poles (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
Servo motor motion encoder rotary encoder for automation 8 poles
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
square-wave signa
Item:
Servo motor motion encoder rotary encoder for automation 8 poles
Shaft diameter:
8mm & 6mm & 10mm
Thickness:
35mm
Resolution:
up to 2500PPR
Protection grade:
IP50
Supply voltage:
DC5V & DC12-24V
Output mode:
NPN & voltage output & push-pull output & difference output
Outlet type:
wire out from side
Wire length:
0.5M
Weight:
about 100g (with package)
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month Servo motor motion encoder rotary encoder for automation 8 poles
Packaging & Delivery
Packaging Details
Carton box for Servo motor motion encoder rotary encoder for automation 8 poles
Port
shanghai
Lead Time :
3 days

Servo motor motion encoder rotary encoder for automation 8 poles





1) Advantages



1, Certification: CE & ISO9001 & SGS.



2, Feature: general, small volume, logical compact configuration, optional various output mode and diameter of shaft, etc.



3, Application: servo motor, textile industry, packing machinery, small instrument, etc., for automation control





2) K35-J Series Specification



Items   Servo motor motion encoder rotary encoder for automation 8 poles
External dimensions  External diameter: 35mm
  Thickness: 35mm
  Shaft diameter: 6mm/8mm/10mm
Resolution   100;200;250;256;300;360;400;450;500;512;600;1000;1024;1200;2000;2048;2500;
     1024/6;1024/8;2000/4;2000/6;2000/8;2048/6;2048/8;2500/4;2500/6;2500/8
Output phase  Phase A,B,Z A- B- Z-,U,V,W
Supply voltage  DC5V & DC8-30 V
Outlettype  Cable out from side (with metal sleeve)
Output mode  NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
     Difference outputLong line drive (26LS31)
Long line drive (RT7272)  Compatible RS422
Environmental temperature   Operating temperature: -20~+80° (Non icing)
  Storage temperature: -25~+85° (Non icing)
Environmental humanity   Operating and storage: 35~85%RH (non-condensing)
Protection grade  IP50
Cable length  500mm
Shell   Aluminium
package  Carton box
Net weight   About 100g (with package)
Certification   CE

3) Pictures






4) Machine Dimension,





 K35 .jpg





Encoder Application

encoder application 2.jpg
