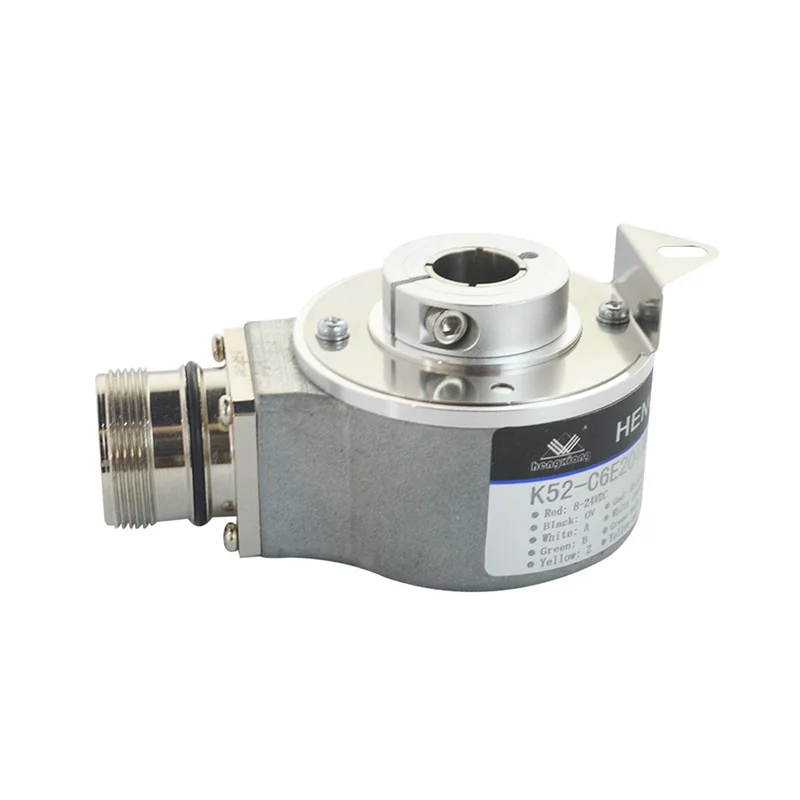

Hollow shaft heavy duty torque encoder installation size 55mm

FOB Reference Price:Get Latest Price
US $20-50 / Pieces | 1 Piece/Pieces Hollow shaft heavy duty torque encoder installation size 55mm (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HEN GXIANG
Model Number:
Hollow shaft heavy duty torque encoder installation size 55mm
Usage:
Pressure Sensor
Theory:
Optical Sensor
Output:
square-wave signal
Item:
Hollow shaft heavy duty torque encoder installation size 55mm
External diameter:
51mm
Shaft diameter:
8mm/10mm/12mm
Thickness:
39mm
Resolution:
up to 23040PPR
Protection grade:
IP50 & IP66
Supply voltage:
DC5V & DC8-30V
Output mode:
NPN & voltage output & push-pull & difference output
Wire length:
1M
Weight:
about 310g (with package)
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month Hollow shaft heavy duty torque encoder installation size 55mm
Packaging & Delivery
Packaging Details
Carton Box for Hollow shaft heavy duty torque encoder installation size 55mm
Port
Shanghai,shenzhen,hongkong,etc
Lead Time :
3-5 days

Hollow shaft heavy duty torque encoder installation size 55mm











1) Advantages



1, Certification: CE & ISO9001 & SGS.

2, Feature: sturdy and durable, optional various output mode, long service life, low price, etc.

3, Application: textile industry, packing machinery,production line, etc., for automation control.





2) S50- Series Specification:





Items Hollow shaft heavy duty torque encoder installation size 55mm
External dimensionsExternal diameter: 51mm
Thickness: 39mm
Shaft diameter: 8mm/10mm/12mm
Resolution 1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;
3600;4096;5000;5760;8192;10000;11521;16384;20000;23040
4poles,6poles,8poles,

1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;2048/8;

4096/4;4096/6;4096/8;8192/4;8192/6;8192/8;

Output phasePhase A,B,Z,U,V,Wor A B Z U V W antipole
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side
Socket out from side
Cable out with socket from side
Output modeCollector open circuit output
Voltage output
Push-pull output
Difference outputLong line drive (26LS31)
Long line drive (HD7)
Long line drive (26C31)-Phase ABZ back of UVW
Environmental temperature Operating temperature: -20~+85° (Non icing)
Storage temperature: -25~+90° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50 & IP66
Cable length1M (cable length could be added appropriately by
       require, but it need payment individually)
Shell Die cast aluminum
packageCarton box
Net weight About  300g (with package)
Certification CE









3)Pictures:








4) Encoder details:










Encoder Application

encoder application 2.jpg
