UVW signal 8mm hole straight encoder 4096ppr 6 poles with delay

FOB Reference Price:Get Latest Price
US $15-40 / Pieces | 1 Piece/Pieces UVW signal 8mm hole straight encoder 4096ppr 6 poles with delay (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 51 - 100 People
  • Factory Size: Below 1,000 square meters
  • No. of Production Lines: 4
Research & Design >
  • No.of R&D Engineer: 5 - 10 People
  • Patent: 1
  • Trademark: 1
Trade Capacity >
  • Export Mode: Using an agent
  • Export Percentage: 41% - 50%
  • No. of Employees inTrade Department: 3-5 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
UVW signal 8mm hole straight encoder 4096ppr 6 poles with delay
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
square-wave signal
Item Name:
UVW signal 8mm hole straight encoder 4096ppr 6 poles with delay
External dameter:
48mm
Hollow shaft diameter:
8mm /6mm /10mm /12mm
Resolution:
up to 5000PPR
Protection grade:
IP50
Supply voltage:
DC5V & DC8-30V
Output mode:
NPN & voltage output & push-pull output & difference output
Outlet type:
wire out from side
Wire length:
500MM
Weight:
140g per piece
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month UVW signal 8mm hole straight encoder 4096ppr 6 poles with delay
Packaging & Delivery
Packaging Details
Carton box for UVW signal 8mm hole straight encoder 4096ppr 6 poles with delay
Port
Shanghai,shenzhen,hongkong,etc
Lead Time :
3 days after full paid

UVW signal 8mm hole straight encoder 4096ppr 6 poles with delay









1) Advantages



1.one of the first mover for encoder business in China of 2001


2. core competitivencess is incremental rotary encoer


3.professional production line and stuff who is making high quality in short time


4.all encoder items have CE&RoHS certification and have special team work for after sales services.





2) K48- Series Specification





Items UVW signal 8mm hole straight encoder 4096ppr 6 poles with delay
External dimensionsExternal diameter: 48mm
Thickness: 34mm
Hollow Shaft diameter: 6mm/8mm/10mm/12mm
Resolution 22;50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;1000;1024;1200;2000;2048;2500;3600;4096;5000
4poles,6poles,8poles,12poles2000/6;2000/8;2000/12;2048/6;2048/8;2500/4;2500/6;2500/8;2500/12;4096/8
Output phasePhase A,B,Z,U,V,Wor A B Z U V W antipole
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side (with metal sleeve)
Output modeOpen Collector circuit output
Voltage output
Push-pull output
Difference outputLong line drive (26LS31)
Long line drive (RT7272)  RS422
Long line drive (26LS31)-Phase ABZ back of UVW
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50
Cable length500mm(Can be added)
Shell Aluminium
packageCarton box
Net weight About  140g (with package)
Certification CE

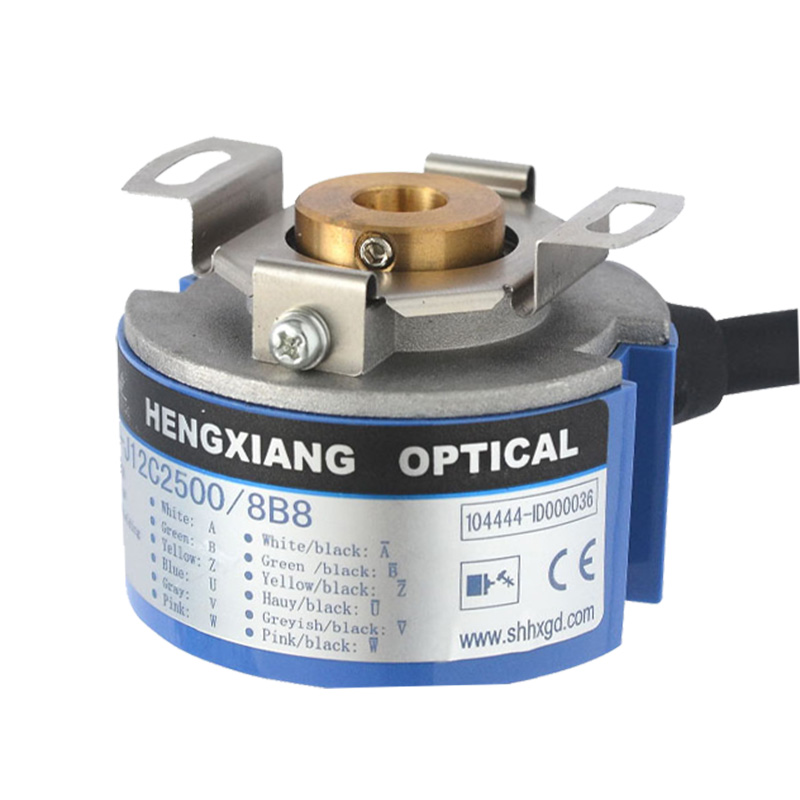

3) Pictures









4) Machine Dimension



















Certifications



Company Information







FAQ

1) What specifications are needed before buying encoder?

         .External Diameter

         .Shaft Diameter

         .Phase & Revolution

         .Circuit Output Mode

         .Power Supply Voltage

2) How to choose a right encoder by yourself ?

      .Exact Specification Describtion

      .Check The Installation Dimensions

      . Contact Supplier to get more details

3) Why choose "Hengxiang" Brand Encoder

        .MOQ:1 PCS only

       .cheap price and big discount

       .short lead time----3days for samples,7-10days for mass production

       .perfect quality---we have CE,ISO,SGS certification.

                                       1year warranty   life-long technical support

4) How to order ?

            .You are welcome t o click  &
               To get the latest quotation right now!!!

5) Your Comapy Official Website?

            .You For More information,please freely visit our official website:http://www.shhxgd.cn
