K38- dc current position sensor

FOB Reference Price:Get Latest Price
US $1-100 / Pieces | 1 Piece/Pieces PCS (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
K38- Series
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
square-wave signa
Brand:
HENGXIANG
External diameter:
38mm
Shaft diameter:
8/5/6/10mm
Thickness:
34mm
Resolution:
up to 2500PPR
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC12-24V
Output mode:
wire out from side (with metal sleeve)
Wire length:
1M
Weight:
about 140g (with package)
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month Month
Packaging & Delivery
Packaging Details
Carton box.
Port
Shanghai
Lead Time :
general time a week, quantity depends!

K38- Series Incremental Type Hollow Shaft Rotary Encoder



1) Advantages

1, Certification: CE & ISO9001 & SGS.

2, Feature: general, small volume,various output mode, long service life, low price etc.

3, Application: textile industry, packing machinery, production line, etc., for automation control.



2) K38- Series Specification



Items Basic parameters
External dimensionsExternal diameter: 38mm
Thickness: 28mm
Shaft diameter: 5mm/6mm/8mm/6.35mm
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000;                   8192;10000;16384
Output phasePhase A,B,Z or A- B- Z-
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side (with metal sleeve)
Cable out from back (with metal sleeve)
Output modeNPN/PNP(Open Collector Output)
Voltage output
Push-pull output
Difference outputLong line drive (26LS31)
Compatible RS422
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50 & IP65
Cable length1M
Shell Aluminium
packageCarton box
Net weight About 140g (with package)
Certification CE

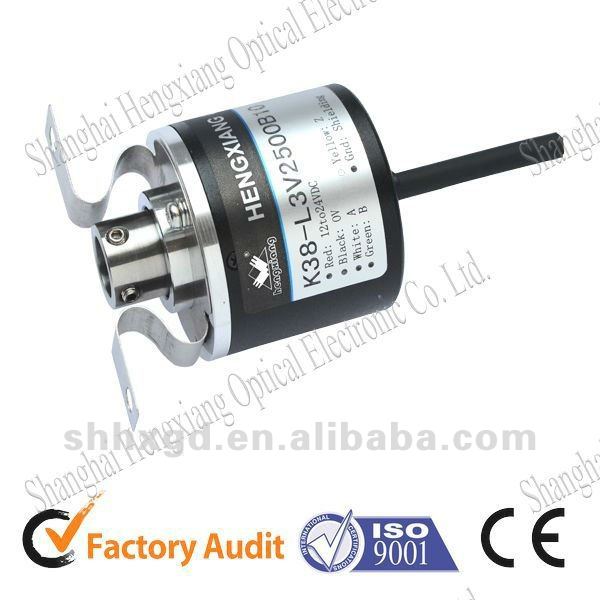

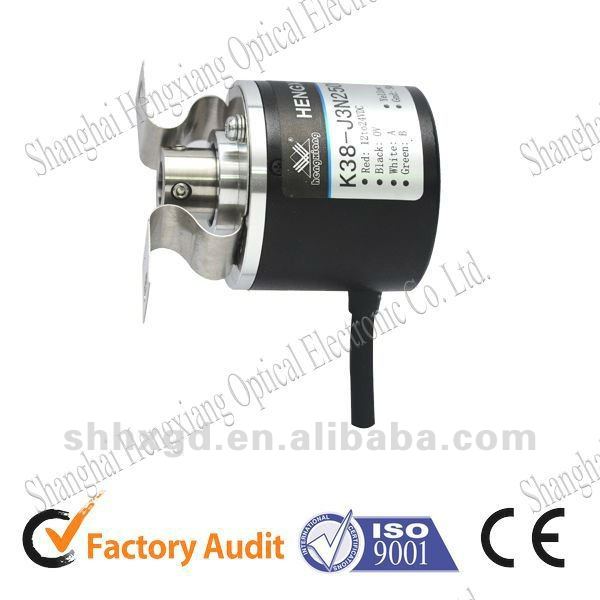

3) Pictures

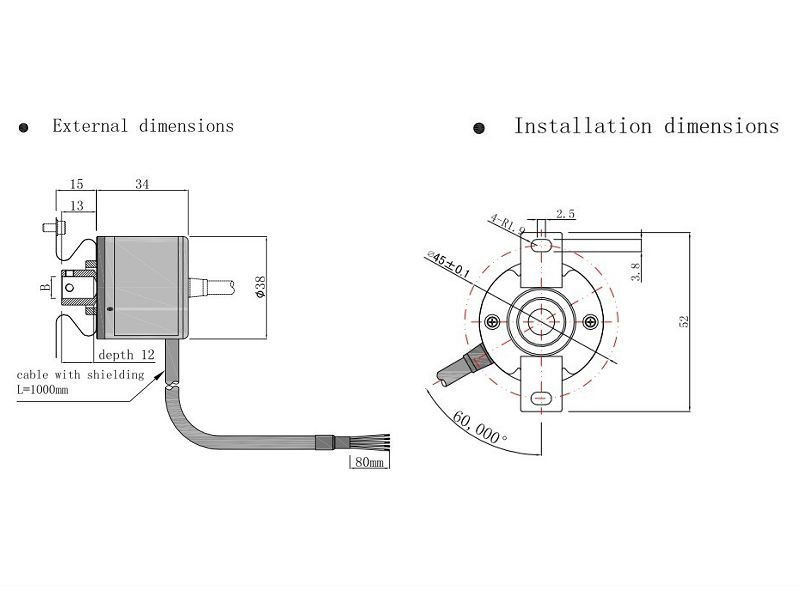

4) Encoder details


5) Main products:

   Encoders:






   Optics:

.jpg

6) Certificates:










 7) More information, welcome to visit: www.shhxgd.com
