K38- price list of electronic sensor

FOB Reference Price:Get Latest Price
US $1-100 / Pieces | 1 Piece/Pieces K38- price list of electronic sensor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
HENGXIANG
Model Number:
K38- price list of electronic sensor
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
square-wave signa
Brand:
HENGXIANG
External diameter:
38mm
Shaft diameter:
8/5/6/10mm
Thickness:
34mm
Resolution:
up to 16384PPR
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC8-30V
Output mode:
wire out from side (with metal sleeve)
Wire length:
1M
Weight:
about 140g (with package)
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month K38- price list of electronic sensor
Packaging & Delivery
Packaging Details
Carton box for K38- price list of electronic sensor
Port
shanghai
Lead Time :
3-5 days

K38- Series Incremental Type Hollow Shaft Encoder



1) Advantages

1, Certification: CE & ISO9001 & SGS.

2, Feature: general, small volume,various output mode, long service life, low price etc.

3, Application: textile industry, packing machinery, production line, etc., for automation control.



2) K38- Series Specification



Items Basic parameters
External dimensionsExternal diameter: 38mm
Thickness: 34mm
Shaft diameter: 5mm/6mm/8mm/6.35mm
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000;                   8192;10000;16384
Output phasePhase A,B,Z or A- B- Z-
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side (with metal sleeve)
Cable out from back (with metal sleeve)
Output modeNPN/PNP(Open Collector Output)
Voltage output
Push-pull output
Difference outputLong line drive (26LS31)
Long line drive (RT7272)  Compatible RS422
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50 & IP65
Cable length1M
Shell Aluminium
packageCarton box
Net weight About 140g (with package)
Certification CE

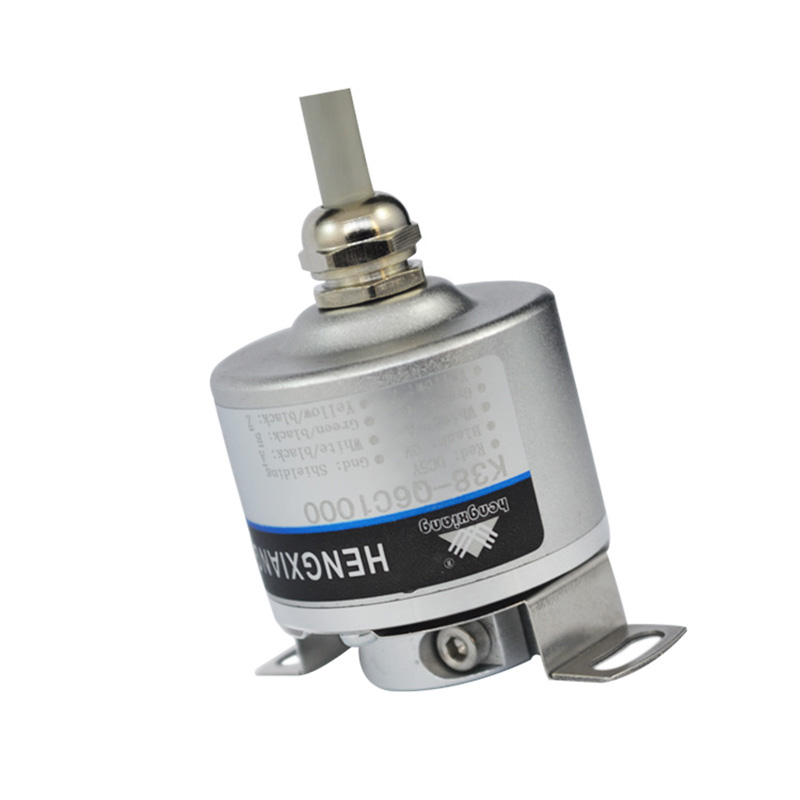

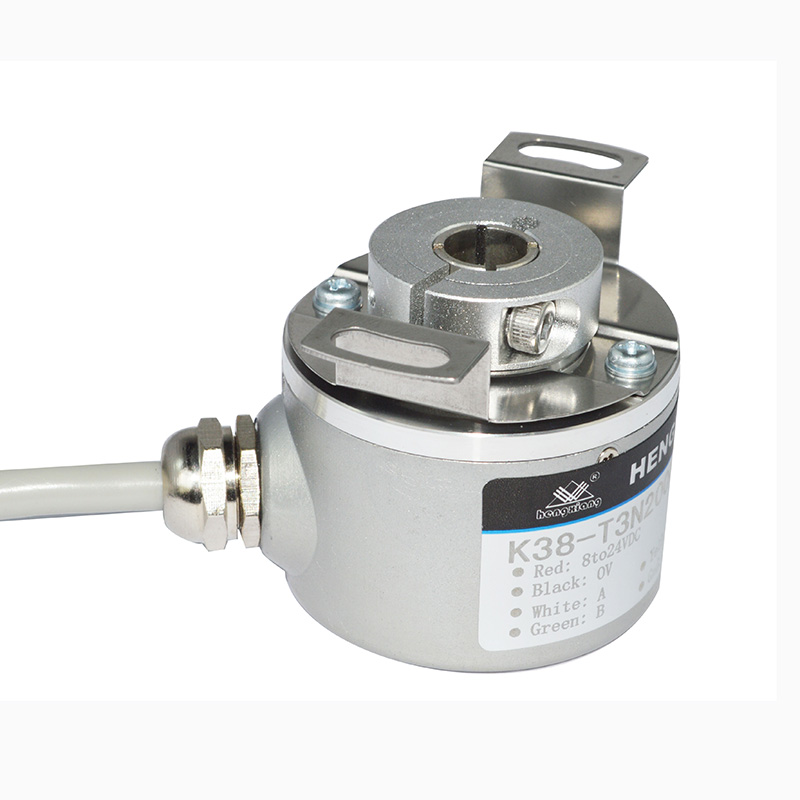

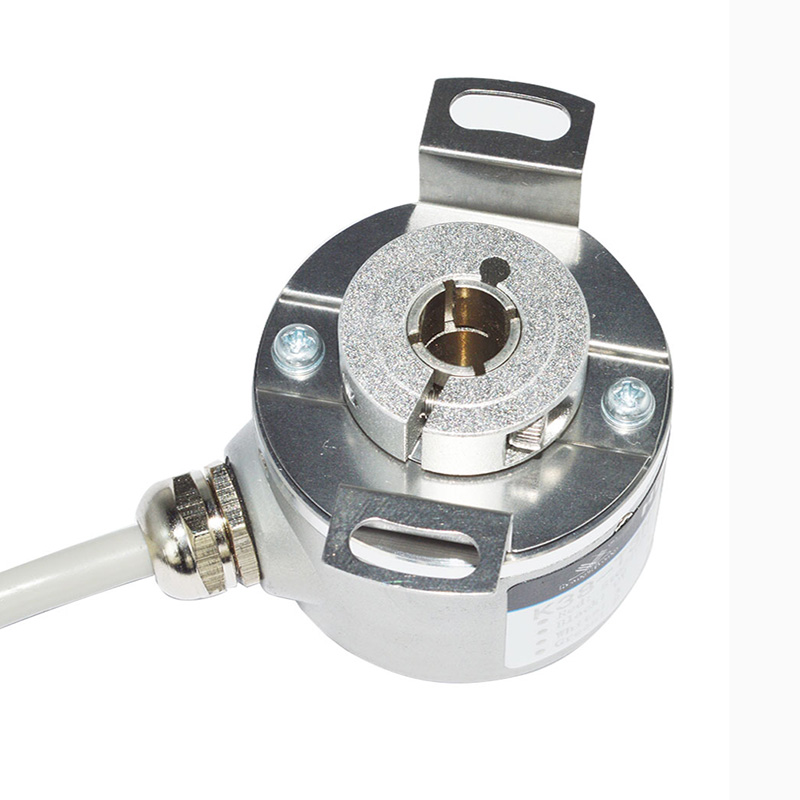

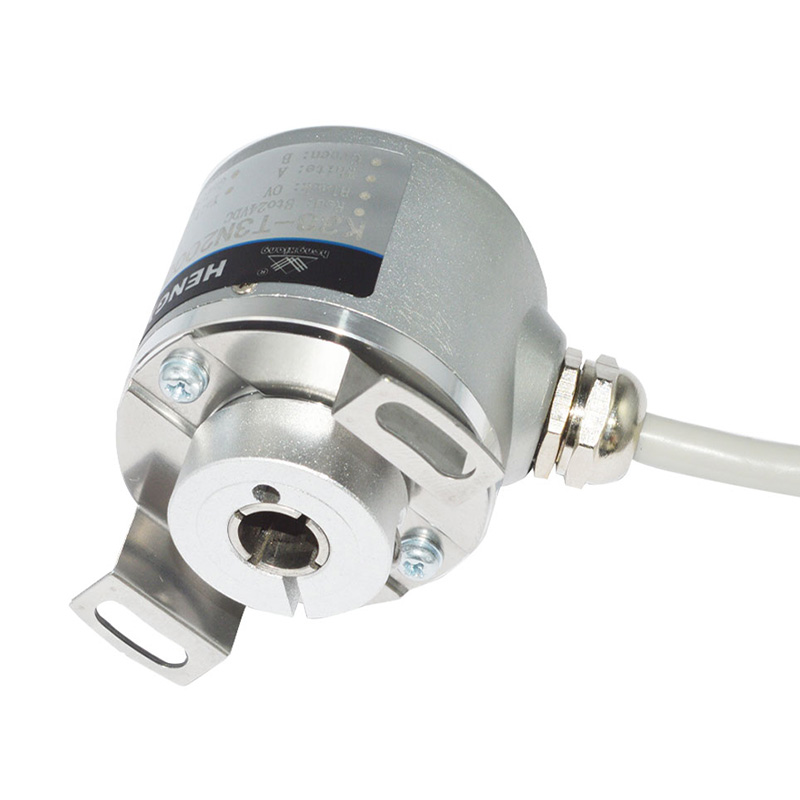

3) Pictures


4) Machine Dimension,










FAQ

1) What specifications are needed before buying encoder?

         .External Diameter

         .Shaft Diameter

         .Phase & Revolution

         .Circuit Output Mode

         .Power Supply Voltage

2) How to choose a right encoder by yourself ?

      .Exact Specification Describtion

      .Check The Installation Dimensions

      . Contact Supplier to get more details

3) Why choose "Hengxiang" Brand Encoder

        .MOQ:1 PCS only

       .cheap price and big discount

       .short lead time----3days for samples,7-10days for mass production

       .perfect quality---we have CE,ISO,SGS certification.

                                       1year warranty   life-long technical support

4) How to order ?

            .You are welcome t o click  &
               To get the latest quotation right now!!!

5) Your Comapy Official Website?

            .You For More information,please freely visit our official website:http://www.shhxgd.cn
